74213 (Z 287 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) SEAT ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

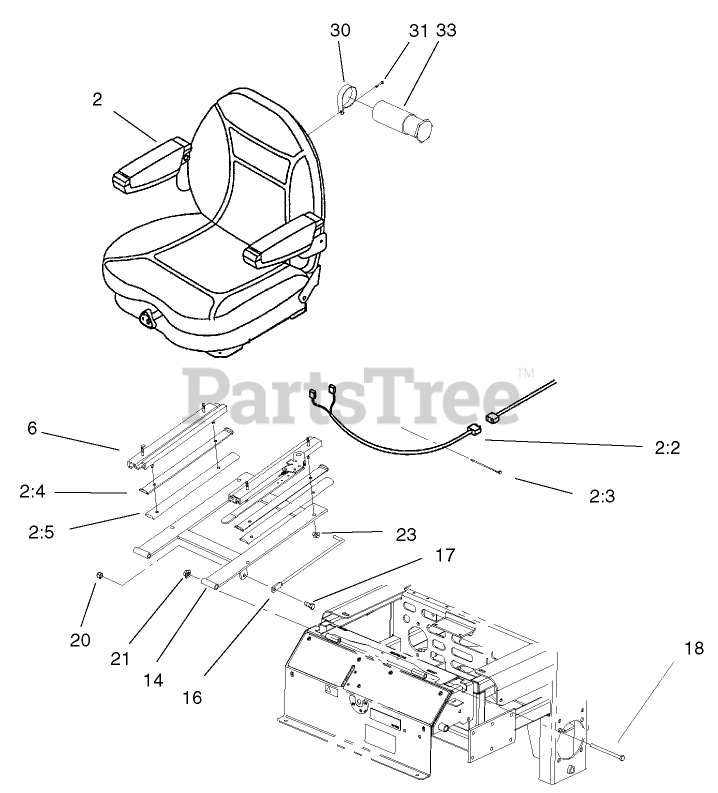

SEAT ASSEMBLY Parts Diagram

  • Title

2

Toro 99-8522

KIT-SUSPENSION, SEAT
(Superseded to 107-1891)

$999.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

2:3

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2:4

Toro 1-633872-03

STOP-SEAT

$47.99

$

Usually ships in 3-6 days

0

2:5

Toro 1-653282-03

STOP/SPACER-SEAT

$54.99

$

Usually ships in 3-6 days

0

2:30

Toro 1-643281

SWITCH-SEAT

Note: Not illustrated

$56.99

$

Usually ships in 3-6 days

0

2:31

Toro 1-631842

KIT-PAD, ARMREST

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

2:32

Toro 1-631843

KIT-BOOT

Note: Not illustrated

$

$

Not available

2:33

Toro 1-631844

ARM KIT ASM

Note: Not illustrated

$525.99

$

Usually ships in 3-6 days

0

2:34

Toro 1-631845

PAN ASM

Note: Not illustrated

$

$

Not available

2:35

Toro 1-631846

KIT-DAMPER

Note: Not illustrated

$

$

Not available

2:36

Toro 1-631847

KIT-ROLLER

Note: Not illustrated

$

$

Not available

2:37

Toro 1-631848

KIT-SPRING & CABLE

Note: Not illustrated

$168.99

$

In Stock, only 1 left!

0

2:38

Toro 1-631849

KIT-KNOB & SHAFT

Note: Not illustrated

$

$

Not available

6

Toro 1-643255

TRACK-SEAT

$217.99

$

In Stock, only 2 left!

0

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$16.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 2412-133

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0
