74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) TANK AND FUEL LINE Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

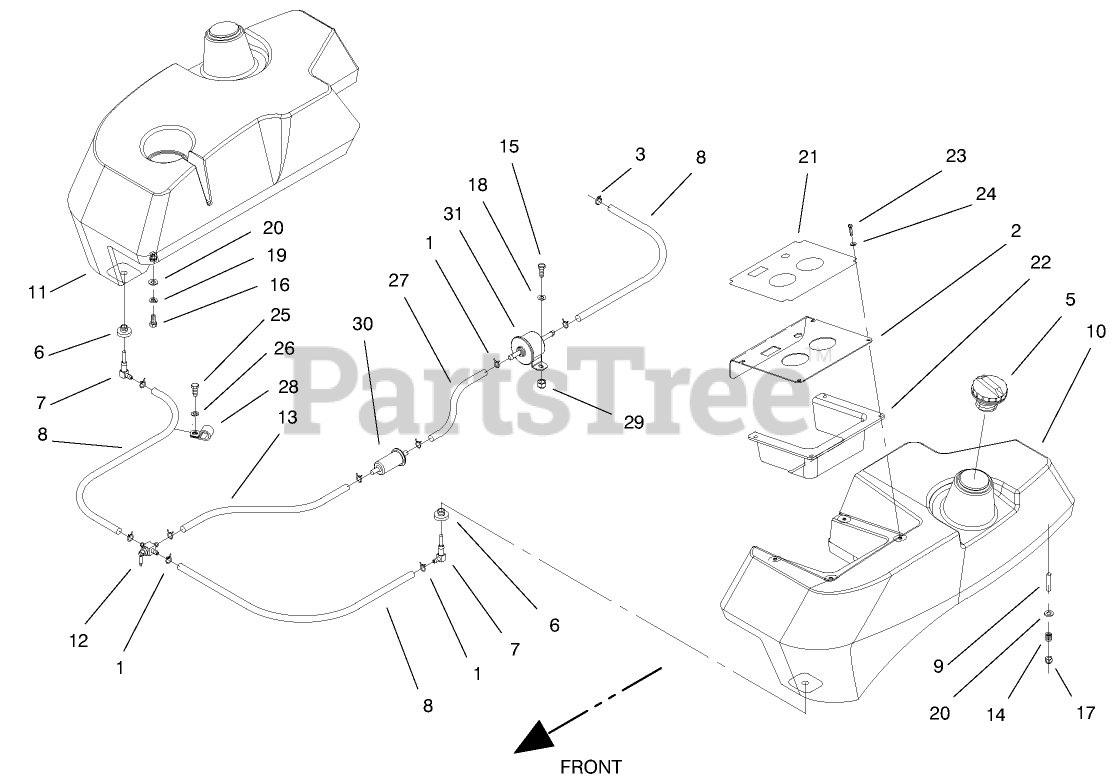

TANK AND FUEL LINE Parts Diagram

  • Title
1

Toro E303077

Clamp
(Superseded to 1-303077)

$1.49

$

In Stock, Qty 20+

0

2

Toro 99-4617

PANEL-CONTROL
(Superseded to 99-4617-03)

$

$

Not available

3

Toro E303308

Clamp
(Superseded to 1-303308)

$

$

Not available

5

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, Qty 5

0

6

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Toro E543277

Elbow
(Superseded to 1-543277)

$12.99

$

In Stock, Qty 6

0

8

Toro E543456

Fuel Line
(Superseded to 1-543456)

$12.99

$

In Stock, only 2 left!

0

9

Toro E633023

Stud
(Superseded to 1-633023)

$6.49

$

In Stock, only 2 left!

0

10

Toro 99-4608

TANK-FUEL, LH
(Superseded to 105-3644)

$901.99

$

Usually ships in 3-6 days

0

11

Toro 99-4607

TANK-FUEL, RH
(Superseded to 105-3643)

$901.99

$

Usually ships in 3-6 days

0

12

Toro E633347

Valve-Fuel Line
(Superseded to 1-633347)

$74.99

$

In Stock, Qty 6

0

13

Toro E303426

Fuel Line
(Superseded to 1-303426)

$

$

Not available

14

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, Qty 6

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 99-4612

DECAL-CONTROL PANEL

$

$

Not available

22

Toro 99-4940

SHIELD-PANEL, CONTROL

$

$

Not available

23

Toro E803071

Screw
(Superseded to 1-803071)

$1.49

$

In Stock, Qty 13

0

24

Toro E303435

Washer
(Superseded to 1-303435)

$1.49

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro E643270

Fuel Line
(Superseded to 1-643270)

$8.49

$

In Stock, only 1 left!

0

28

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 49019-1055

Filter-Fuel

Note: Obtain locally.

$

$

Not available

31

Toro 49040-2065

PUMP-FUEL

Note: Obtain locally.

$

$

Not available
