74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) STARTER-KAWASAKI FD661D S03 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

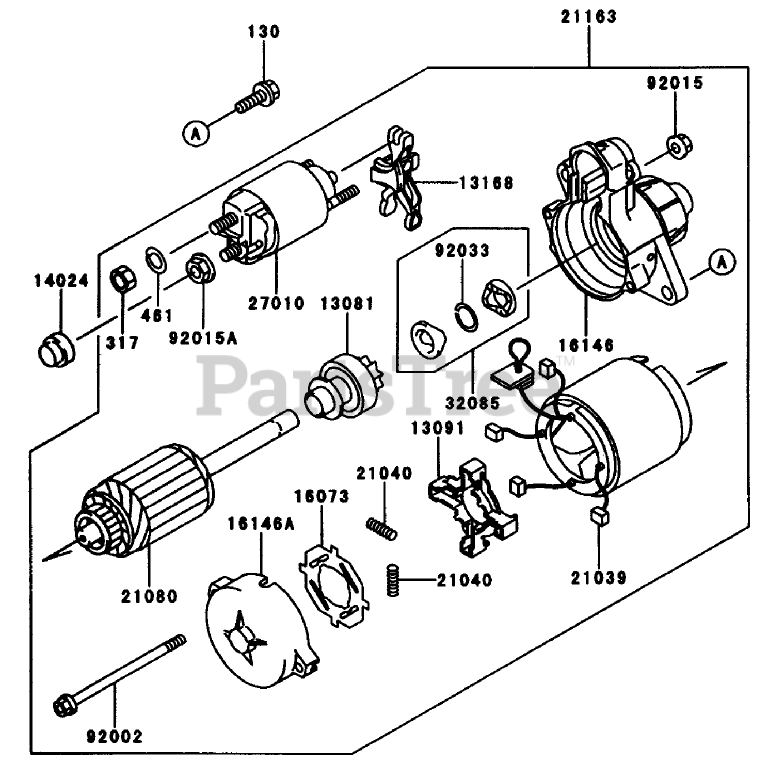

STARTER-KAWASAKI FD661D S03 Parts Diagram

  • Title

13081

Kawasaki 13081-2108

Clutch ASM

$122.99

$

Usually ships in 2-5 days

0

13091

Kawasaki 13091-2068

Brush Holder
(Superseded to 13280-0873)

$29.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-2131

Lever-Shift

$24.99

$

In Stock, only 1 left!

0

14024

Kawasaki 14024-2205

Cover

$1.49

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2186

Cover-Assy
(Superseded to 16146-2241)

$

$

Not available

16146A

Toro 16146-2187

Cover ASM

$

$

Currently unavailable

21039

Kawasaki 21039-2059

Brush
(Superseded to 21039-0011)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-2052

Spring-Brush

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-2054

Armature

$

$

Not available

21163

Kawasaki 21163-2101

Starter-Electric
(Superseded to 21163-2147)

$602.99

$

Usually ships in 2-5 days

0

27010

Toro 27010-2122

Switch

$

$

Currently unavailable

32085

Kawasaki 32085-2097

Stopper

$15.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2277

Bolt
(Superseded to 92154-2116)

$13.99

$

In Stock, Qty 5

0

92015

Kawasaki 92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2081

Ring-Snap

$6.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

$0.99

$

In Stock, only 1 left!

0

317

Toro 317B0800

Nut-Hex, Small (8mm)

$

$

Currently unavailable

461

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable
