74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) REAR HOOD ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

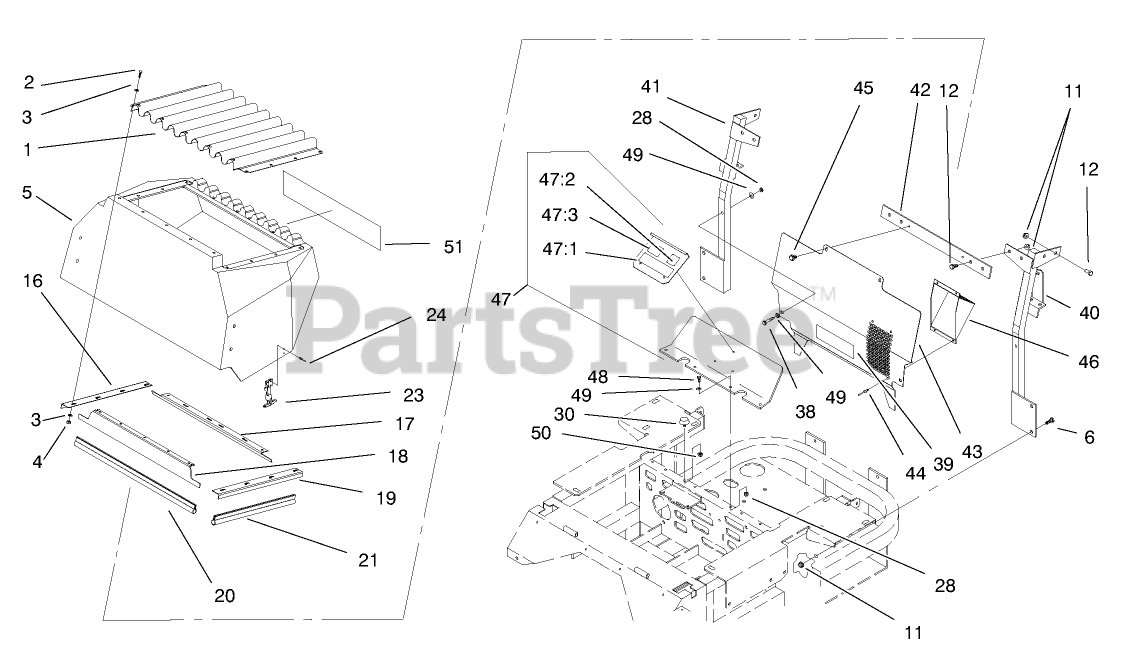

REAR HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro E633864

Screen-Intake, Radiator
(Superseded to 1-633864-03)

$274.99

$

Usually ships in 3-6 days

0

2

Toro E803069

Screw-HSBH
(Superseded to 1-803075)

$1.49

$

In Stock, Qty 5

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

5

Toro E633858

Hood-Engine
(Superseded to 104-5136)

$

$

Not available

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro E643106

Angle-Trim, Radiator
(Superseded to 1-643106-03)

$29.99

$

Usually ships in 3-6 days

0

17

Toro E643108

Angle-Trim, Radiator
(Superseded to 1-643108-03)

$39.99

$

Usually ships in 3-6 days

0

18

Toro E643107

Angle-Trim, Radiator
(Superseded to 1-643107-03)

$47.99

$

Usually ships in 3-6 days

0

19

Toro E643105

Angle-Trim, Radiator
(Superseded to 1-643105-03)

$29.99

$

Usually ships in 3-6 days

0

20

Toro E643187

Seal-Trim
(Superseded to 1-643187)

$22.99

$

Usually ships in 3-6 days

0

21

Toro E643186

Seal-Trim
(Superseded to 1-643186)

$26.99

$

Usually ships in 3-6 days

0

23

Toro E643188

Latch-Rubber
(Superseded to 1-643188)

$22.99

$

In Stock, only 2 left!

0

24

Toro E803056

Rivet
(Superseded to 923786)

$0.99

$

Usually ships in 3-6 days

0

28

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

30

Toro E523420

Bumper
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

38

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

39

Toro E633771

Decal-Belt Pump
(Superseded to 1-633771)

$

$

Not available

40

Toro E632984

Radiator Brace ASM, LH
(Superseded to 1-632984-03)

$169.99

$

Usually ships in 3-6 days

0

41

Toro E632985

Radiator Brace ASM, RH
(Superseded to 1-632985-03)

$

$

Not available

42

Toro E633878

Crossbar
(Superseded to 1-633878-03)

$

$

Not available

43

Toro E643087

Deflector-Air
(Superseded to 1-643087-03)

$

$

Not available

44

Toro E803010

Rivet-Pop
(Superseded to 1-803010)

$

$

Not available

45

Toro E809086

Screw-Tapping
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

46

Toro E643096

Plenum-Intake, Air
(Superseded to 1-643096-03)

$

$

Not available

47

Toro E644276

Shield ASM
(Superseded to 1-644276)

$106.99

$

In Stock, only 1 left!

0

47:1

Toro E643252

Decal-Belt, Drive
(Superseded to 1-643252)

$

$

Not available

47:2

Toro E513748

Decal-Guard
(Superseded to 1-513748)

$5.49

$

In Stock, Qty 6

0

47:3

Toro E633462

Decal-Important
(Superseded to 1-633462)

$5.49

$

In Stock, only 4 left!

0

48

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro E805256

Washer-Flat
(Superseded to 1-805256)

$

$

Not available

50

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

51

Toro 99-4621

DECAL-Z MASTER LIQUID COOLED

$

$

Not available
