74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

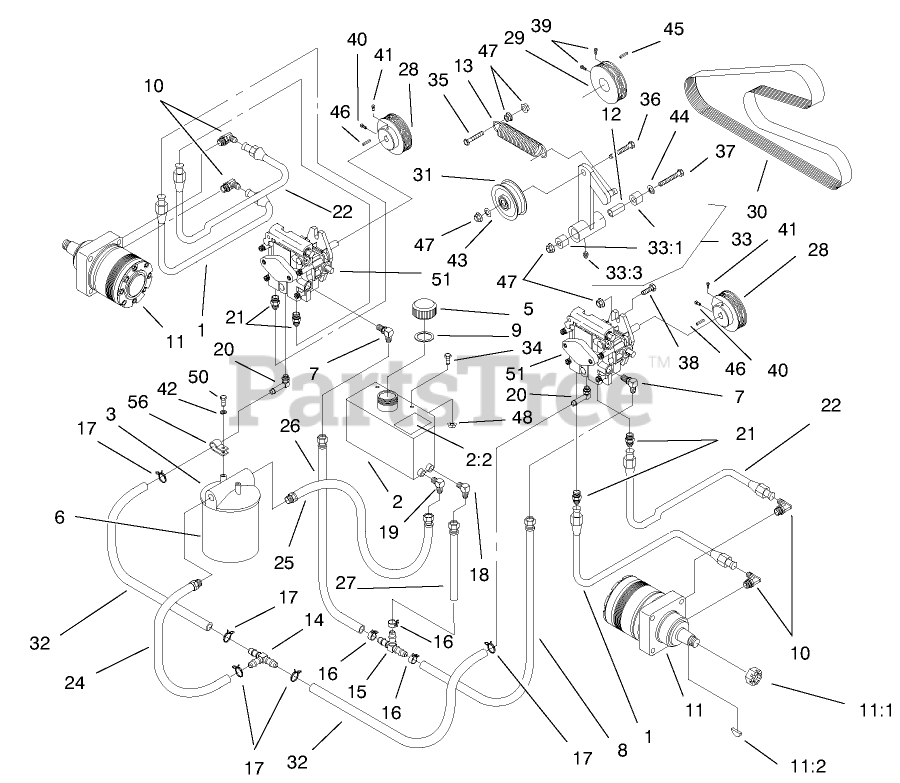

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro E633776

Hose
(Superseded to 103-3734)

$104.99

$

In Stock, only 2 left!

0

2

Toro 99-4625

HYDRAULIC TANK ASM

$

$

Not available

2:2

Toro E523552

Decal-HydraulicTank, Hot Surface
(Superseded to 1-523552)

$1.99

$

In Stock, Qty 15

0

3

Toro E513006

Filter
(Superseded to 1-513006)

$90.99

$

Usually ships in 3-6 days

0

5

Toro E513167

Cap
(Superseded to 1-513167)

$27.99

$

In Stock, only 4 left!

0

6

Toro E633750

Filter-Hydro
(Superseded to 1-633750)

$26.99

$

In Stock, Qty 15

0

6

Toro E633752

Filter-Winter
(Superseded to 1-633752)

$34.99

$

In Stock, only 1 left!

0

7

Toro E513840

Elbow
(Superseded to 1-513840)

$29.99

$

In Stock, only 1 left!

0

8

Toro E522217

Hose ASM-Low Pressure
(Superseded to 1-522217)

$38.99

$

Usually ships in 3-6 days

0

9

Toro E523103

Gasket
(Superseded to 1-523103)

$7.49

$

In Stock, Qty 6

0

10

Toro E633786

Elbow
(Superseded to 1-633786)

$

$

Not available

11

Toro E523328

Motor-Wheel
(Superseded to 1-523328)

$1375.99

$

Usually ships in 3-6 days

0

11:1

Toro E809036

Nut
(Superseded to 1-809036)

$37.99

$

In Stock, Qty 5

0

11:2

Toro E807020

Key-Woodruff
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 12

0

12

Toro E603384

Bushing
(Superseded to 1-603384)

$14.99

$

In Stock, Qty 18

0

13

Toro E603413

Spring-Extension
(Superseded to 1-603413)

$23.99

$

In Stock, only 4 left!

0

14

Toro E603721

Fitting
(Superseded to 1-603721)

$23.99

$

Usually ships in 3-6 days

0

15

Toro E603722

Fitting
(Superseded to 1-603722)

$23.99

$

Usually ships in 3-6 days

0

16

Toro E603826

Clamp-Hose
(Superseded to 1-603826)

$1.49

$

Usually ships in 3-6 days

0

17

Toro E603827

Clamp-Hose
(Superseded to 1-603827)

$2.99

$

In Stock, only 4 left!

0

18

Toro E603987

Elbow
(Superseded to 1-603987)

$21.99

$

Usually ships in 3-6 days

0

19

Toro E603988

Elbow
(Superseded to 1-603988)

$22.99

$

Usually ships in 3-6 days

0

20

Toro E603989

Elbow
(Superseded to 1-603989)

$36.99

$

Usually ships in 3-6 days

0

21

Toro E603990

Adapter
(Superseded to 1-603990)

$18.99

$

In Stock, Qty 15

0

22

Toro E633777

Hose
(Superseded to 1-633777)

$103.99

$

Usually ships in 3-6 days

0

24

Toro E632281

Hose ASM-Low Pressure
(Superseded to 1-632281)

$37.99

$

In Stock, only 1 left!

0

25

Toro E632282

Hose ASM-Low Pressure
(Superseded to 1-632282)

$66.99

$

Usually ships in 3-6 days

0

26

Toro E632285

Hose-Low Pressure
(Superseded to 1-632285)

$43.99

$

In Stock, only 3 left!

0

27

Toro E632286

Hose-Low Pressure
(Superseded to 1-632286)

$27.99

$

In Stock, only 3 left!

0

28

Toro E633568

Sheave
(Superseded to 1-633568)

$95.99

$

In Stock, only 1 left!

0

29

Toro E633567

Sheave
(Superseded to 1-633567)

$112.99

$

In Stock, Qty 5

0

30

Toro E633749

Belt
(Superseded to 1-633749)

$46.99

$

In Stock, Qty 5

0

31

Toro E633167

Pulley-Idler
(Superseded to 1-633167)

$37.99

$

In Stock, Qty 7

0

32

Toro E633335

Hose-Lo Pressure
(Superseded to 1-633335)

$33.99

$

In Stock, only 1 left!

0

33

Toro E634277

Arm ASM
(Superseded to 1-634277)

$165.99

$

In Stock, only 1 left!

0

33:1

Toro E513034

Bearing-Pivot
(Superseded to 1-513034)

$7.49

$

In Stock, Qty 20+

0

33:3

Toro E811008

Zerk-Grease
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

34

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro E800805

Screw-HH
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

38

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Toro E803022

Screw
(Superseded to 1-803022)

$2.99

$

In Stock, Qty 20+

0

40

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

41

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

42

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

46

Toro E807272

Key
(Superseded to 1-807272)

$5.99

$

In Stock, Qty 11

0

47

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

50

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro E603841

Pump-Hydro
(Superseded to 103-2766)

$1568.99

$

Usually ships in 3-6 days

0

56

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0
