74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) ELECTRICAL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

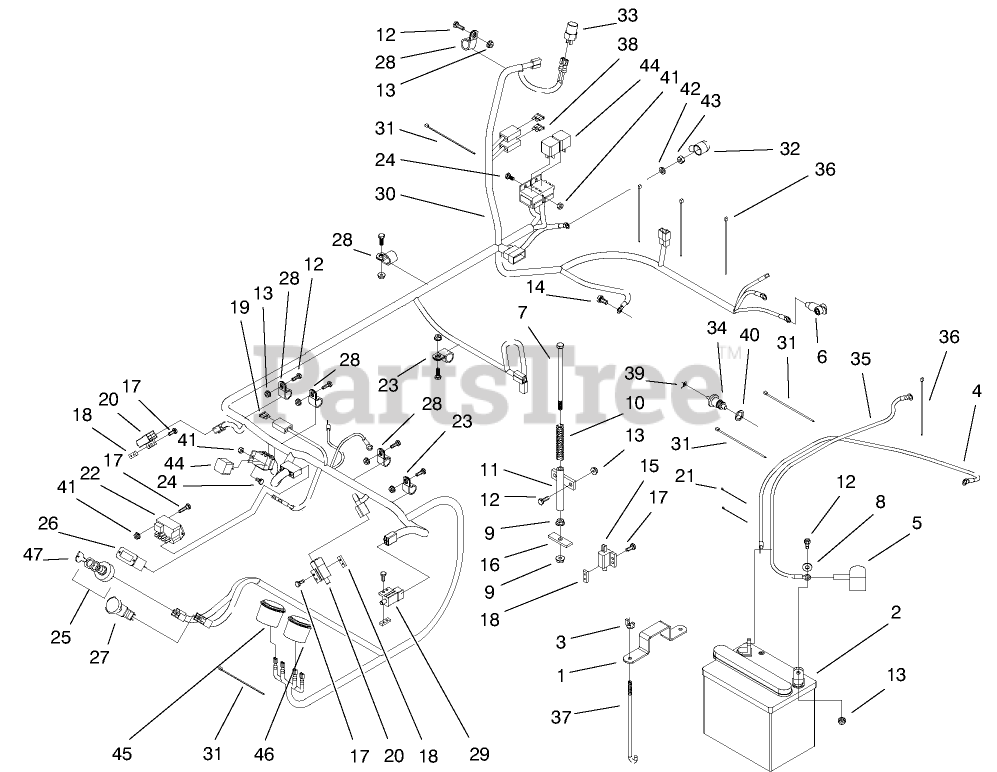

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro E633652

Strap-Hold Down
(Superseded to 1-633652-03)

$21.99

$

In Stock, only 3 left!

0

2

Toro E603479

Battery
(Superseded to 105-1692)

$

$

Not available

3

Toro E543792

Wingnut
(Superseded to 1-543792)

$6.49

$

In Stock, Qty 15

0

4

Toro E633307

Wire-Ground
(Superseded to 1-633307)

$41.99

$

In Stock, only 3 left!

0

5

Toro E543391

Insulator Battery
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

6

Toro E643178

Cap-Insulator, Alternator
(Superseded to 1-643178)

$5.49

$

Usually ships in 3-6 days

0

7

Toro E800282

Screw
(Superseded to 1-800282)

$5.49

$

In Stock, only 1 left!

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro E523415

Spring
(Superseded to 1-523415)

$33.99

$

In Stock, only 1 left!

0

11

Toro E522424

Mount-Spring
(Superseded to 1-522424-03)

$37.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

14

Toro E809026

Screw-HH
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

15

Toro E513152

Switch-Seat
(Superseded to 1-513152)

$13.99

$

In Stock, Qty 15

0

16

Toro E513180

Actuator-Switch
(Superseded to 1-513180)

$17.99

$

In Stock, only 3 left!

0

17

Toro E803028

Screw
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

18

Toro E633181

Plate
(Superseded to 1-633181)

$6.49

$

In Stock, only 2 left!

0

19

Toro E816001

Fuse
(Superseded to 1-816001)

$6.49

$

In Stock, Qty 13

0

20

Toro E633111

Switch-Drive Lever
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

21

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

22

Toro E633856

Module-Interlock, Ignition
(Superseded to 1-633856)

$191.99

$

Usually ships in 3-6 days

0

23

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

24

Toro E803071

Screw
(Superseded to 1-803071)

$1.49

$

In Stock, Qty 13

0

25

Toro E543070

Ignition Switch
(Superseded to 1-543070)

$44.99

$

In Stock, only 2 left!

0

26

Toro E513374

Meter-Hour
(Superseded to 1-513374)

$69.99

$

In Stock, only 1 left!

0

27

Toro E633673

Switch
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

28

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

29

Toro E633110

Switch-Brake
(Superseded to 1-633110)

$22.99

$

In Stock, only 2 left!

0

30

Toro E643205

Harness-Wiring, Toro
(Superseded to 1-643205)

$

$

Not available

31

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

32

Toro E543393

Insulator Solenoid
(Superseded to 1-543393)

$5.49

$

In Stock, only 2 left!

0

33

Toro E633833

Switch-Fan, Thermal
(Superseded to 1-633833)

$106.99

$

Usually ships in 3-6 days

0

34

Toro E643036

Sender Unit-Temperature
(Superseded to 1-643036)

$

$

Not available

35

Toro E523279

Cable-Battery
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

36

Toro E643115

Tie-Plastic
(Superseded to 1-643115)

$2.99

$

Usually ships in 3-6 days

0

37

Toro E633651

Bolt
(Superseded to 1-633651)

$7.99

$

In Stock, Qty 9

0

38

Toro E816003

Fuse-30 Amp
(Superseded to 1-816003)

$5.99

$

Usually ships in 3-6 days

0

39

Toro E643145

Tab
(Superseded to 1-643145)

$2.99

$

In Stock, Qty 5

0

40

Toro E643153

Washer-Sender Gasket, Aluminum
(Superseded to 1-643153)

$5.49

$

Usually ships in 3-6 days

0

41

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

42

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

44

Toro E643275

Relay
(Superseded to 1-643275)

$23.99

$

In Stock, Qty 6

0

45

Toro E643037

Gauge-Voltmeter
(Superseded to 1-643037)

$210.99

$

In Stock, only 1 left!

0

46

Toro E643021

Gauge-Temperature
(Superseded to 1-643021)

$142.99

$

In Stock, only 2 left!

0

47

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0
