74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099001001 - 099999999) (1999) CONTROL-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

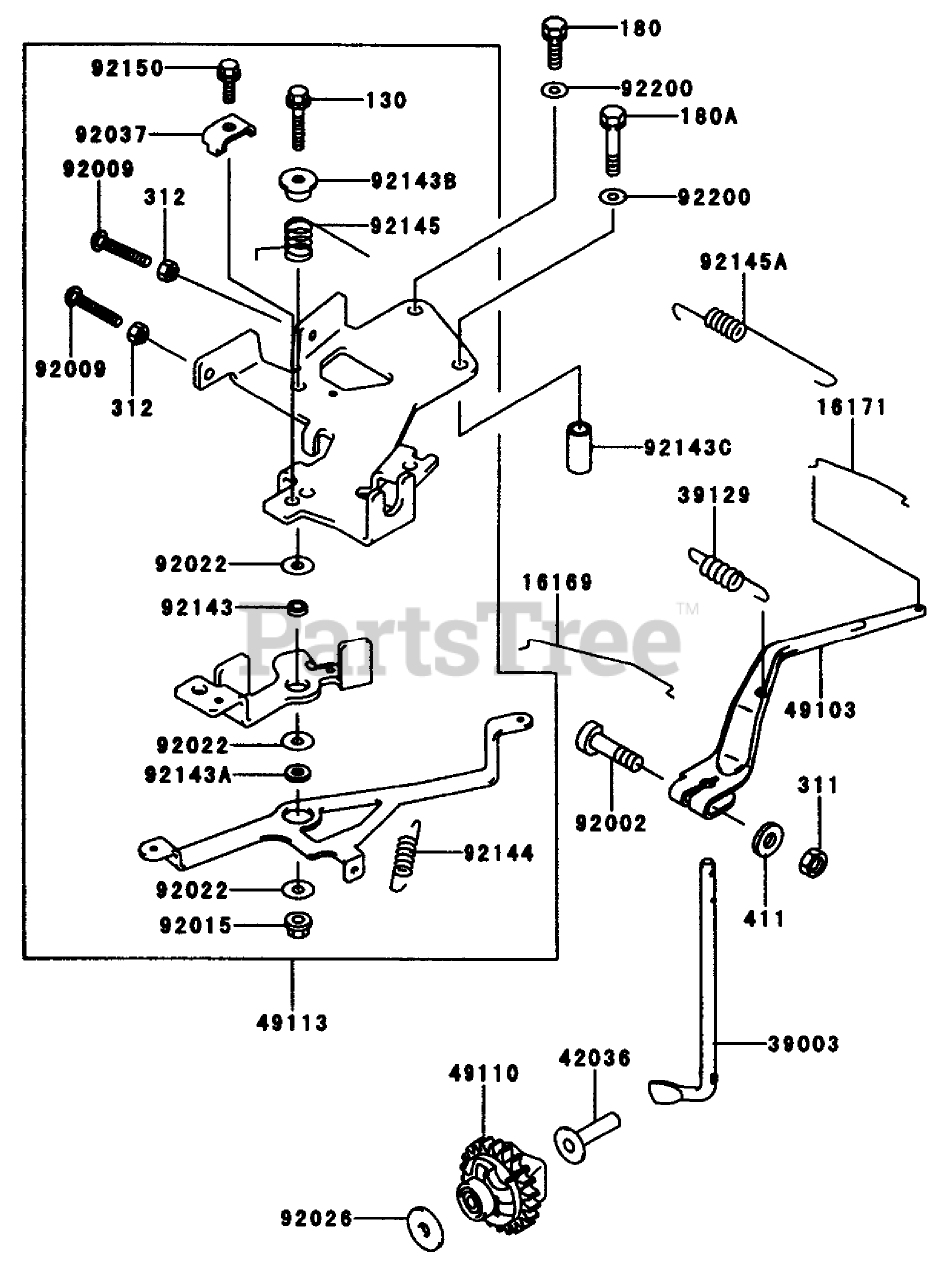

CONTROL-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

  • Title
16169

Kawasaki 16169-2092

Link-Choke

$1.99

$

In Stock, Qty 8

0

16171

$1.99

$

In Stock, Qty 5

0

39003

Kawasaki 39003-2083

Arm-Pivot
(Superseded to 39003-2082)

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-2081

Spring-Governor
(Superseded to 39129-2080)

$3.99

$

In Stock, only 1 left!

0

42036

Kawasaki 42036-2060

Sleeve
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 11

0

49103

Kawasaki 49103-2141

Arm-Governor

$7.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2091

Governor-Assy

$11.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-2165

Panel-Comp-Control

$87.99

$

In Stock, only 2 left!

0

92002

Kawasaki 92002-2269

Bolt (6X28)

$1.99

$

In Stock, Qty 6

0

92009

Kawasaki 92009-2381

Screw (5X30)

$0.99

$

In Stock, Qty 5

0

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2372

WASHER (6X19X1.2)

$0.99

$

In Stock, only 3 left!

0

92026

Kawasaki 92200-2036

Washer (6.2X20X0.5)

$1.49

$

In Stock, Qty 13

0

92037

$1.49

$

In Stock, only 4 left!

0

92143

Kawasaki 92143-1596

Collar,6.2x10x3.4

$4.49

$

In Stock, only 1 left!

0

92143A

Kawasaki 92143-2135

COLLAR (6X13X2.3)

$0.99

$

In Stock, only 1 left!

0

92143B

$1.99

$

In Stock, only 4 left!

0

92143C

Kawasaki 92143-2200

Collar,6.8x10x20.5

$10.99

$

In Stock, only 1 left!

0

92144

$9.49

$

In Stock, only 1 left!

0

92145

$0.99

$

In Stock, Qty 8

0

92145A

$3.49

$

In Stock, only 1 left!

0

92150

Kawasaki 92150-2182

BOLT (5X18)

$0.99

$

In Stock, Qty 10

0

92200

$

$

Currently unavailable

130

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 16

0

180

Kawasaki 180B0616

Bolt-Flanged
(Superseded to 180AA0616)

$0.99

$

In Stock, Qty 20+

0

180A

Kawasaki 180B0635

Bolt-Upset WS
(Superseded to 180AA0635)

$2.49

$

In Stock, Qty 20+

0

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

312

Toro 312B0500

Nut-Hex (5mm)

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0
