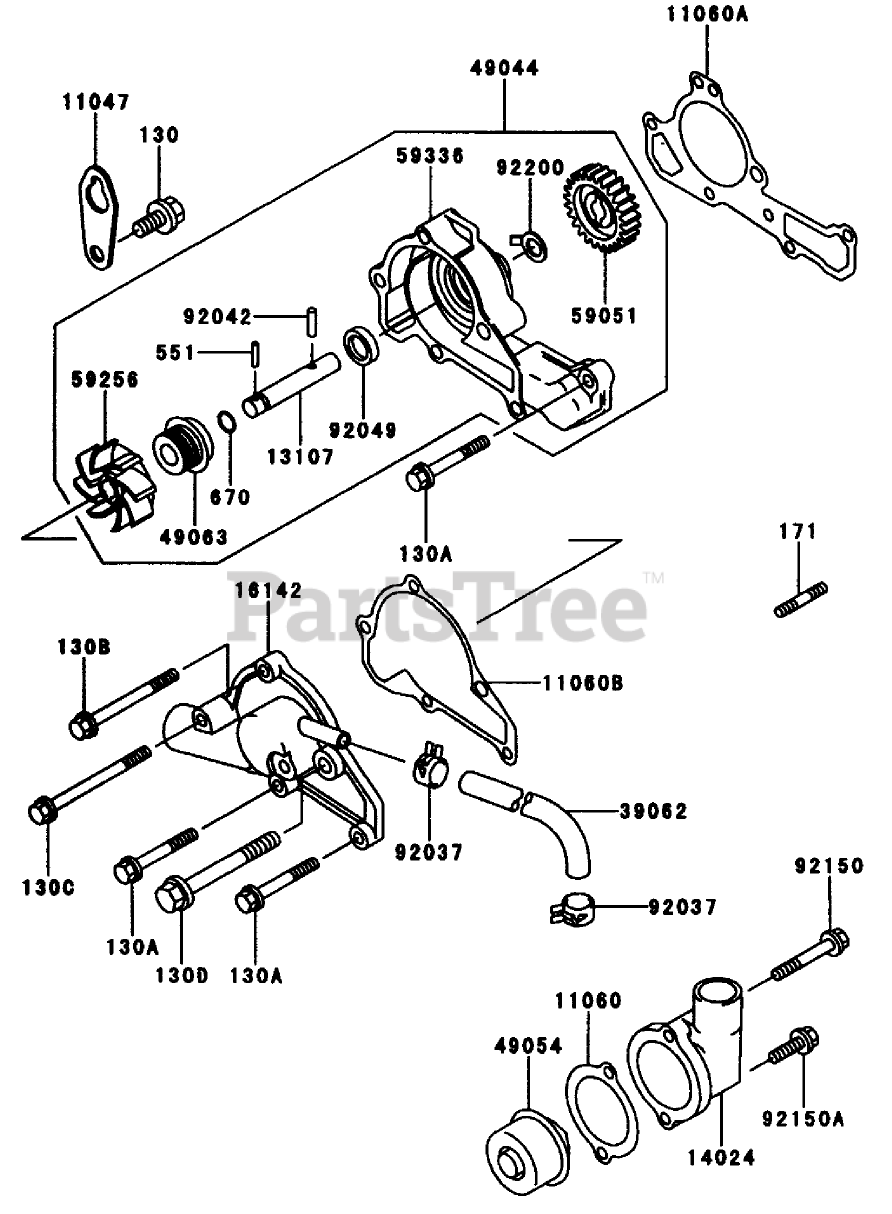

74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099001000) (1999) COOLING-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

COOLING-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

  • Title
11047

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2084

Gasket,Thermostat Cover
(Superseded to 11009-2768)

$3.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2450

Gasket,Pump Case
(Superseded to 11060-2082)

$8.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2451

Gasket,Pump Cover
(Superseded to 11060-2288)

$5.99

$

In Stock, Qty 20+

0

13107

Kawasaki 13107-2097

Shaft-Impeller

$9.49

$

In Stock, only 3 left!

0

14024

Kawasaki 14024-2293

Cover, Thermostat
(Superseded to 14093-0061)

$17.99

$

In Stock, only 1 left!

0

16142

Toro 16142-2069

Cover-Pump

$

$

Currently unavailable

39062

Kawasaki 39062-2051

Hose-Cooling, 7.5x13.5x305

$5.99

$

In Stock, only 4 left!

0

49044

Toro 49044-2058

Pump-Water

$

$

Currently unavailable

49054

Kawasaki 49054-2056

Thermostat
(Superseded to 49054-2052)

$31.99

$

In Stock, Qty 20+

0

49063

Toro 49063-2056

Seal-Mechanical

$

$

Currently unavailable

59051

$5.99

$

In Stock, only 1 left!

0

59256

Kawasaki 59256-2057

Impeller
(Superseded to 59256-2051)

$4.99

$

Usually ships in 2-5 days

0

59336

$35.99

$

Usually ships in 2-5 days

0

92037

$1.99

$

Usually ships in 2-5 days

0

92042

$0.99

$

In Stock, Qty 12

0

92049

$4.49

$

In Stock, Qty 12

0

92150

$1.99

$

Usually ships in 2-5 days

0

92150A

$2.49

$

Usually ships in 2-5 days

0

92200

$3.49

$

In Stock, only 1 left!

0

130

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

130A

Toro 130T0645

Bolt-Flanged

$

$

Currently unavailable

130B

Kawasaki 130T0665

Bolt-Flanged
(Superseded to 130CA0665)

$1.99

$

Usually ships in 2-5 days

0

130C

Toro 130T0675

Bolt-Flanged

$

$

Currently unavailable

130D

Toro 130T0870

Bolt-Flanged

$

$

Currently unavailable

171

Toro 171G0818

Bolt-Stud

$

$

Currently unavailable

551

Kawasaki 551A0314

Pin-Dowel (3X14)

$0.99

$

In Stock, Qty 9

0

670

Kawasaki 670B1507

O Ring (7mm)
(Superseded to 92055-1072)

$1.49

$

In Stock, Qty 15

0
