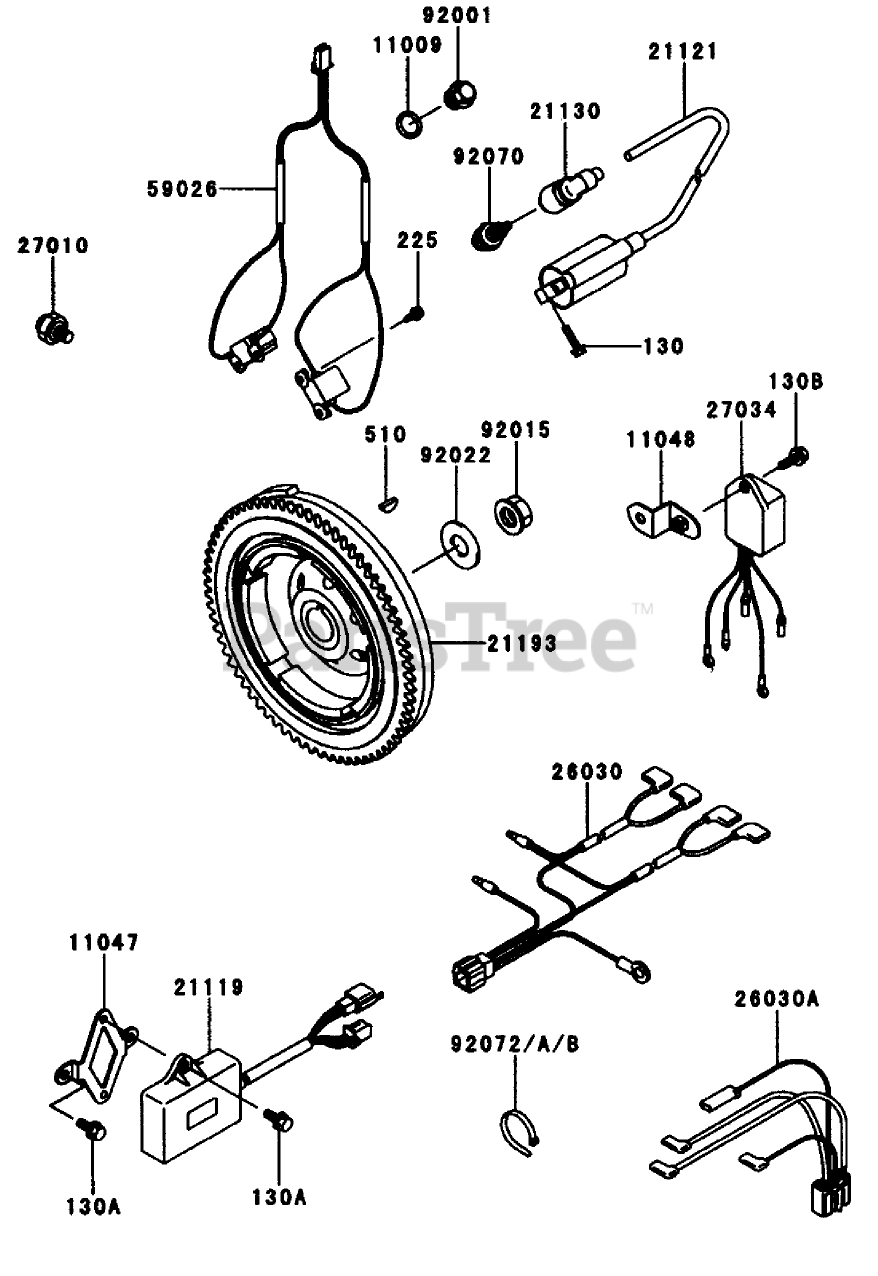

74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) ELECTRIC-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

ELECTRIC-EQUIPMENT-KAWASAKI FD661D S03 Parts Diagram

  • Title

11009

Kawasaki 11009-2766

Gasket (16X24X1)
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

11047

Kawasaki 11047-2036-9H

Bracket

$14.99

$

Usually ships in 2-5 days

0

11048

Kawasaki 11048-2008

Bracket

$4.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2157

Igniter
(Superseded to 21119-2116)

$317.99

$

In Stock, only 1 left!

0

21121

Kawasaki 21121-2083

Coil-Ignition
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 8

0

21130

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Toro 21193-2149

Flywheel-Assy

$

$

Currently unavailable

26030

Kawasaki 26030-2167

Harness
(Superseded to 26030-2081)

$26.99

$

Usually ships in 2-5 days

0

26030A

Kawasaki 26030-2267

Harness

$36.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-7001

Switch
(Superseded to 27010-0817)

$23.99

$

In Stock, Qty 9

0

27034

Kawasaki 27034-2056

Relay

$81.99

$

Usually ships in 2-5 days

0

59026

Kawasaki 59026-2054

Coil-Pulsing

$

$

Not available

92001

Kawasaki 92001-1114

Bolt
(Superseded to 92066-2251)

$

$

Not available

92015

Kawasaki 92015-2167

Nut

$7.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2245

Washer

$1.49

$

Usually ships in 2-5 days

0

92070

Toro 92070-2060

Plug-Spark,BMR6A(NGK), Solid

$

$

Currently unavailable

92072

Kawasaki 92072-1195

Band

$1.99

$

Usually ships in 2-5 days

0

92072A

Kawasaki 92072-1237

Band

$2.49

$

Usually ships in 2-5 days

0

92072B

Kawasaki 92072-2003

Band
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

130

Toro 130b0520

Bolt-Flange

$

$

Currently unavailable

130A

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

225

Kawasaki 225B0414

Screw-Pan-Wsp-Cros
(Superseded to 225AA0414)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 20+

0
