74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) CYLINDER/CRANKCASE-KAWASAKI FD661D S03 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

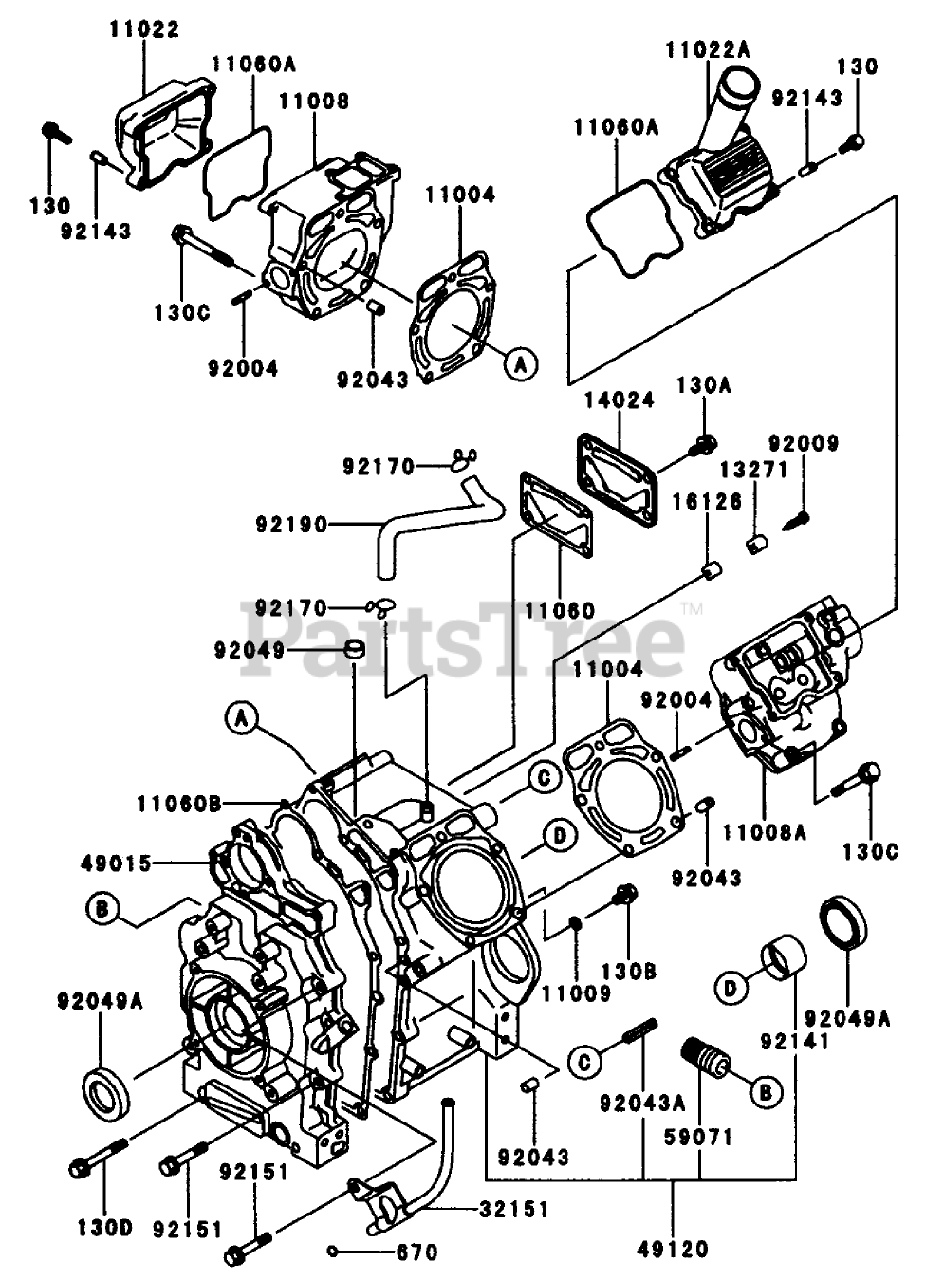

CYLINDER/CRANKCASE-KAWASAKI FD661D S03 Parts Diagram

  • Title

11004

Kawasaki 11004-2107

Gasket-Head

$19.99

$

In Stock, Qty 10

0

11008

Kawasaki 11008-2135

Head-Comp-Cylinder
(Superseded to 11008-2087)

$

$

Not available

11008A

Kawasaki 11008-6036

Head-Comp-Cylinder
(Superseded to 11008-6015)

$

$

Not available

11009

Kawasaki 11009-3028

Gasket (8.2X12X1)

$0.99

$

In Stock, Qty 10

0

11022

Kawasaki 11022-2056

Case-Rocker

$16.99

$

In Stock, Qty 7

0

11022A

Kawasaki 11022-2063

Case-Rocker

$33.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2089

Gasket
(Superseded to 11009-2934)

$4.49

$

In Stock, Qty 6

0

11060A

Toro 11060-2332

Gasket, Rocker Case

$

$

Currently unavailable

11060B

Kawasaki 11060-2449

Gasket, Crankcase Cover
(Superseded to 11060-2284)

$22.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2054

Plate

$2.49

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2292

Cover

$5.49

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2146

Valve

$0.99

$

In Stock, Qty 8

0

32151

Kawasaki 32151-2032-9H

Pipe, Oil Guage
(Superseded to 32151-2010-9H)

$32.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6204

Cover-Crankcase

$454.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-2291

Crankcase-Comp
(Superseded to 49120-6115)

$1059.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

Joint

$6.49

$

In Stock, Qty 8

0

92004

Kawasaki 92004-2142

Stud

$1.49

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

92043

Kawasaki 92043-1037

Pin

$0.99

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-2227

Pin

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-2110

Seal-Oil
(Superseded to 92049-2112)

$6.99

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-2110

Bearing-Plane
(Superseded to 92141-2122)

$8.49

$

In Stock, Qty 11

0

92143

Kawasaki 92143-2010

Collar

$0.99

$

In Stock, Qty 9

0

92151

Kawasaki 92151-2123

Bolt,8x45
(Superseded to 92153-2130)

$2.49

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2002

Clamp

$0.99

$

In Stock, only 3 left!

0

92190

Kawasaki 92190-2146

Tube

$7.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130C0812

Bolt-Flanged (8X12)
(Superseded to 130AB0812)

$0.99

$

Usually ships in 2-5 days

0

130C

Toro 130G0865

Bolt-Flanged

$

$

Currently unavailable

130D

Toro 130T0860

Bolt-Flanged

$

$

Currently unavailable

670

Kawasaki 670B2010

O-Ring (10mm)

$1.99

$

In Stock, Qty 8

0
