74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) VALVE/CAMSHAFT-KAWASAKI FD661D S03 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

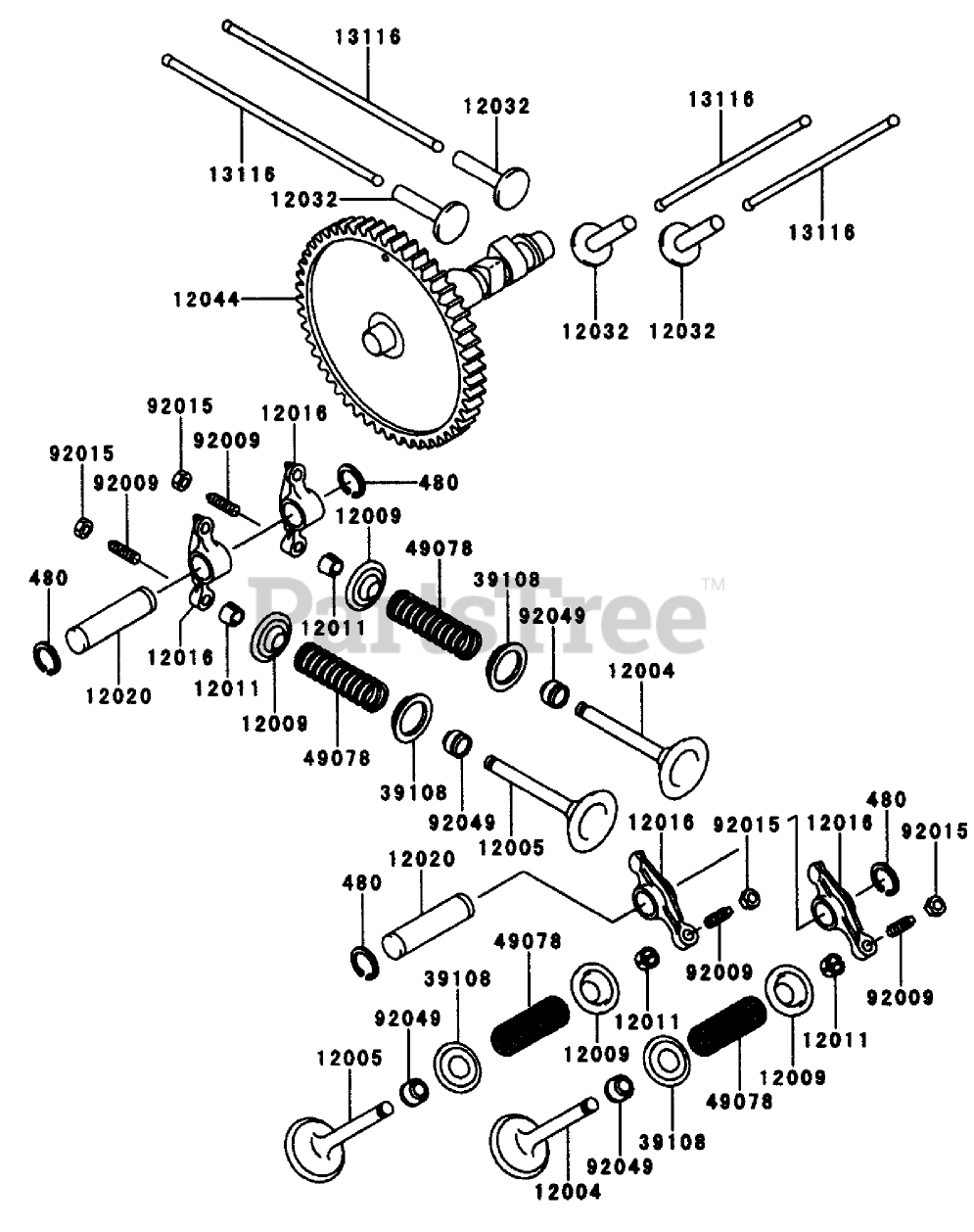

VALVE/CAMSHAFT-KAWASAKI FD661D S03 Parts Diagram

  • Title

12004

Kawasaki 12004-2104

Valve-Intake
(Superseded to 12004-2115)

$21.99

$

In Stock, only 2 left!

0

12005

Kawasaki 12005-2093

Valve-Exhaust

$31.99

$

In Stock, only 3 left!

0

12009

Kawasaki 12009-2067

Retainer-Valve Spring

$4.49

$

In Stock, only 3 left!

0

12011

Kawasaki 12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2056

Arm-Rocker

$19.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 12020-2059

Shaft-Rocker

$5.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-2064

Tappet

$11.99

$

In Stock, only 1 left!

0

12044

Kawasaki 12044-2239

Camshaft-Valve
(Superseded to 12044-0803)

$179.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-2057

Rod-Push

$4.99

$

In Stock, Qty 20+

0

39108

Kawasaki 39108-2057

Retainer-Spring

$0.99

$

In Stock, Qty 10

0

49078

Kawasaki 49078-2082

Spring-Engine Valve
(Superseded to 49078-2077)

$3.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-1109

Screw

$2.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1137

Nut
(Superseded to 92210-1491)

$1.49

$

In Stock, only 2 left!

0

92049

Kawasaki 92049-2109

Seal-Oil

$5.99

$

In Stock, Qty 11

0

480

Kawasaki 480J1200

Circlip

$0.99

$

In Stock, Qty 10

0
