74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) REAR BUMPER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

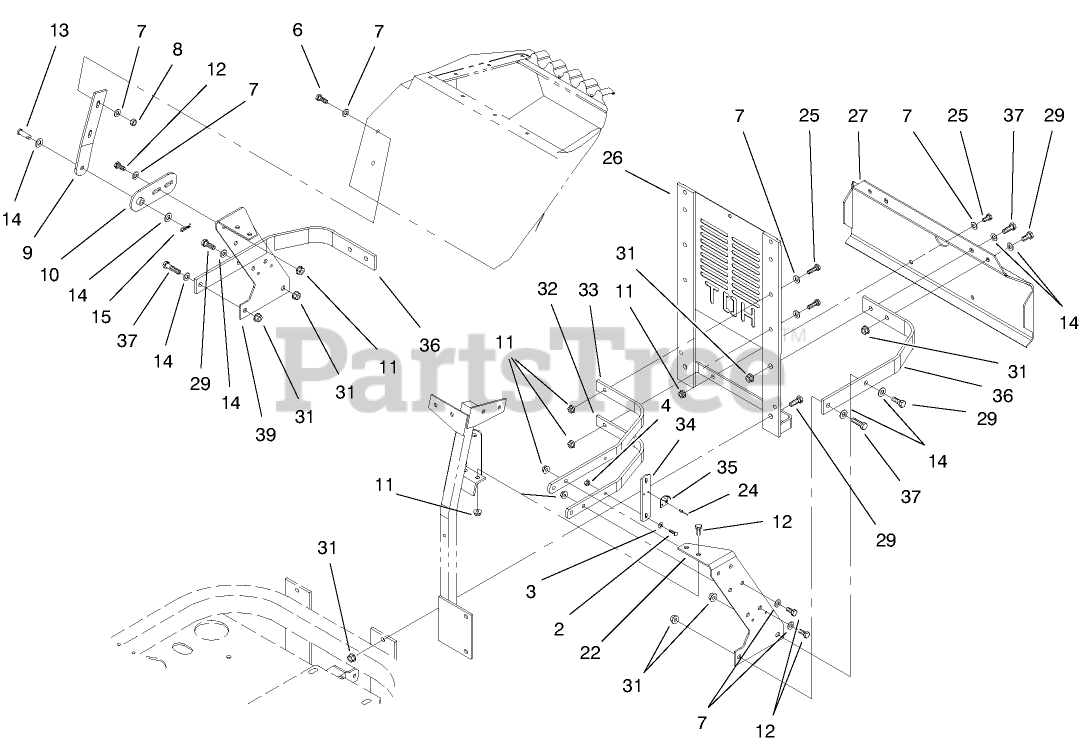

REAR BUMPER ASSEMBLY Parts Diagram

  • Title
2

Toro E803069

Screw-HSBH
(Superseded to 1-803075)

$1.49

$

In Stock, Qty 5

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 32146-4

NUT-LOCK NI

$

$

Not available

9

Toro E633885

Plate-Hinge, Hood
(Superseded to 1-633885-03)

$

$

Not available

10

Toro E632986

Shackle Hinge ASM
(Superseded to 1-632986-03)

$

$

Not available

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro E808285

Pin-Clevis
(Superseded to 1-808285)

$3.49

$

In Stock, Qty 15

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro E806003

Pin-Hair Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

22

Toro E633900

Plate-Mount, Radiator
(Superseded to 1-633900-03)

$

$

Not available

24

Toro E803056

Rivet
(Superseded to 923786)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro E632873

Rear Radiator Mount ASM
(Superseded to 1-632873-03)

$

$

Not available

27

Toro E633886

Bumper-Rear
(Superseded to 1-633886-03)

$

$

Not available

29

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Toro E633897

Rib-Top
(Superseded to 1-633897-03)

$

$

Not available

33

Toro E633898

Rib-Bottom
(Superseded to 1-633898-03)

$

$

Not available

34

Toro E633877

Bar-Hook, Latch
(Superseded to 1-633877-03)

$

$

Not available

35

Toro E643189

Keeper-Latch, Rubber
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

36

Toro E633896

Bar-Frame, Radiator Mount
(Superseded to 1-633896-03)

$

$

Not available

37

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Toro E633901

Plate-Mount, Radiator
(Superseded to 103-0897-03)

$

$

Not available
