74209 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 0000001 - 0000999) (2000) GROUP8-FUEL SYSTEM (CH22S 76513 KOHLER) Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

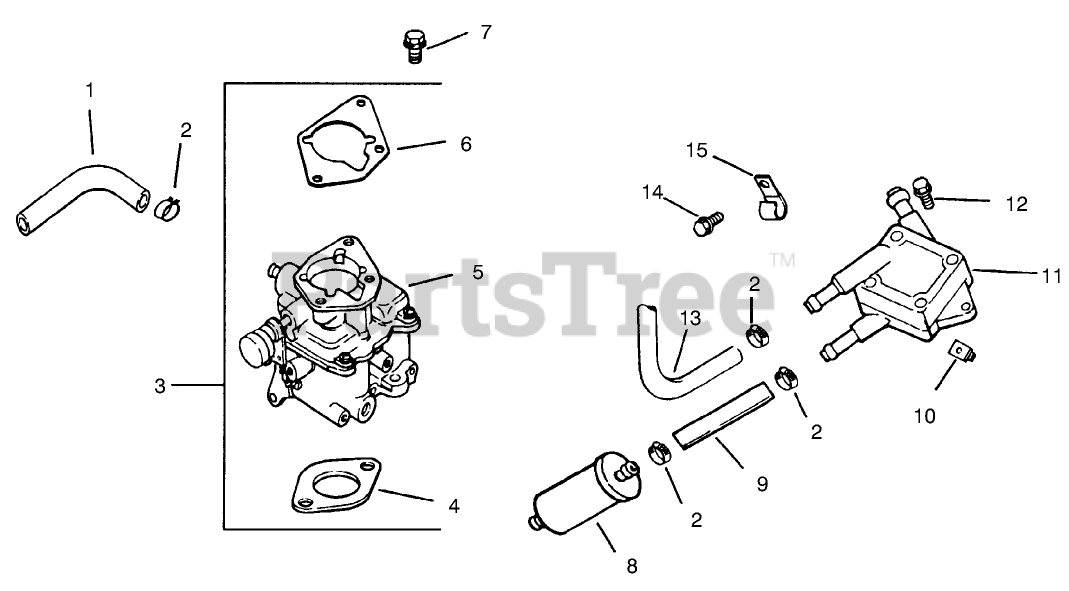

GROUP8-FUEL SYSTEM (CH22S 76513 KOHLER) Parts Diagram

  • Title

1

2535310

Line fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 34

Kit, carburetor w/gasket (Includes 4-6)
(Superseded to 24 853 34-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$434.99

$

In Stock, only 2 left!

0

4

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0

5

Kohler 24 053 34

Carburetor ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 9

0

7

Kohler M-0651030

Screw
(Superseded to M-651030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

2535315

Line-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

11

2439304

Pump-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2408612

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2435302

Line, fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

15

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0
