74209 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 0000001 - 0000999) (2000) CASTER AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

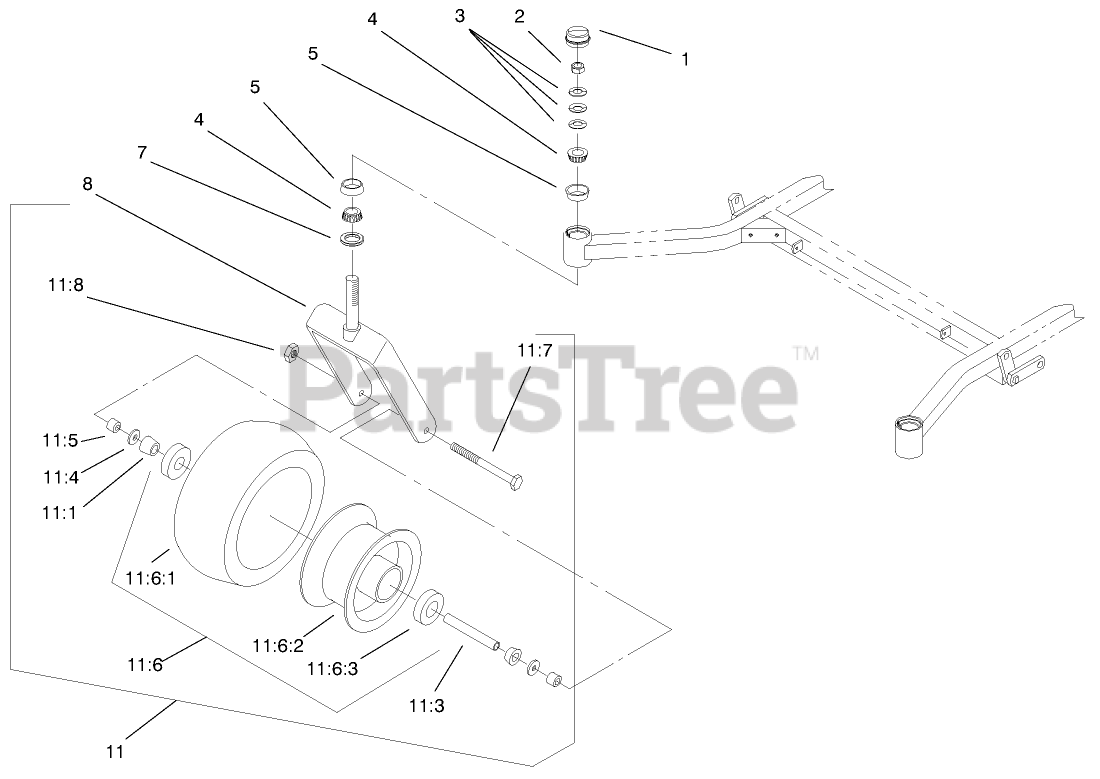

CASTER AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro E543513

Cap-Grease
(Superseded to 1-543513)

$8.49

$

In Stock, Qty 20+

0

2

Toro 32146-14

LOCKNUT
(Superseded to 3296-51)

$6.49

$

In Stock, Qty 20+

0

3

Toro E633508

Washer-Bellevue
(Superseded to 1-633508)

$3.49

$

In Stock, Qty 20+

0

4

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

5

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

7

Toro E543511

Seal-Grease
(Superseded to 1-543511)

$12.99

$

In Stock, Qty 20+

0

8

Toro E642111

Caster
(Superseded to 116-8887)

$149.99

$

In Stock, only 1 left!

0

11

Toro E644251

Caster Wheel ASM
(Superseded to 1-644251)

$234.99

$

In Stock, only 1 left!

0

11:1

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 17

0

11:3

Toro E633959

Spacer-Front Caster
(Superseded to 1-633959)

$18.99

$

In Stock, only 2 left!

0

11:4

Toro E633580

Seal-Bearing
(Superseded to 1-633580)

$9.49

$

In Stock, Qty 8

0

11:5

Toro E633581

Spacer-Bearing
(Superseded to 1-633581)

$4.99

$

In Stock, Qty 20+

0

11:6

Toro E633971

Wheel & Tire ASM
(Superseded to 1-644251)

$234.99

$

In Stock, only 1 left!

0

11:6:1

Toro E523009

Tire
(Superseded to 1-523009)

$113.99

$

Usually ships in 3-6 days

0

11:6:2

Toro E633987

Wheel
(Superseded to 1-633987)

$232.99

$

In Stock, only 1 left!

0

11:6:3

Toro 254-79

BEARING-ROLLER, CUP

$7.49

$

In Stock, Qty 12

0

11:7

Toro 325-24

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

11:8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
