74205 (Z 255) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 8-FUEL SYSTEM (CH25S 68606 KOHLER) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

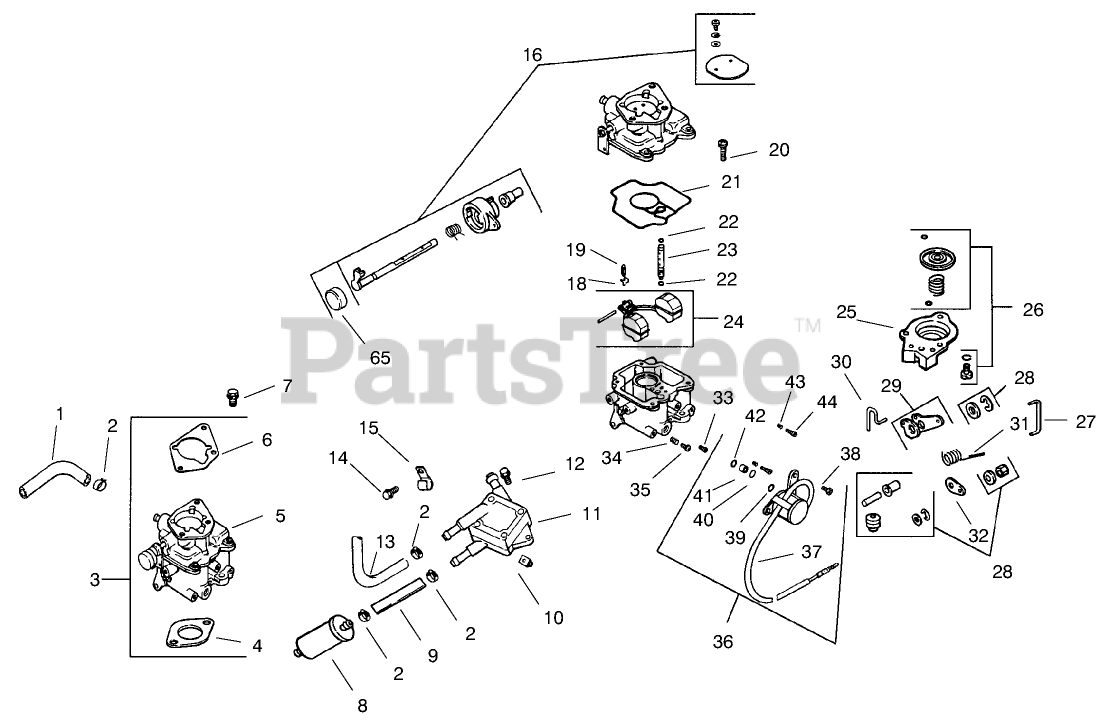

GROUP 8-FUEL SYSTEM (CH25S 68606 KOHLER) Parts Diagram

  • Title

1

2535310

Line fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 34

Kit, carburetor w/gasket (Includes 4-6)
(Superseded to 24 853 34-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$434.99

$

In Stock, only 2 left!

0

4

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

5

Kohler 24 053 34

Carburetor ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 053 34

Carburetor ASM

Note: For Information Only-Not Available Separately

$

$

Not available

6

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 11

0

7

Kohler M-0651030

Screw
(Superseded to M-651030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

2535315

Line-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

11

2439304

Pump-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2408612

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2435302

Line, fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

15

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 5

0

18

2415401

Clip, cable

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

2446201

Valve-Inlet Needle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

2408609

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

21

Kohler 24 041 09

Gasket-Body,Carburetor
(Superseded to 24 041 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$31.99

$

In Stock, only 1 left!

0

22

2415302

"O"Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 24 337 29

Jet-Slow
(Superseded to 24 337 29-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

24

Kohler 24 757 02

Roat Repair Kit
(Superseded to 24 757 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$133.99

$

Usually ships in 2-5 days

0

25

Kohler 24 081 05

Housing-Pump
(Superseded to 24 081 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

Usually ships in 2-5 days

0

26

Kohler 24 757 08

Kit repair-accelerator pump
(Superseded to 24 757 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$84.99

$

In Stock, only 1 left!

0

27

Kohler 24 079 07

Linkage-Rod
(Superseded to 24 079 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

Usually ships in 2-5 days

0

28

Kohler 24 757 09

Kit repair-accelerator pump diagram
(Superseded to 24 757 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$109.99

$

Usually ships in 2-5 days

0

29

Kohler 24 090 16

Lever-Rod
(Superseded to 24 090 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$51.99

$

Usually ships in 2-5 days

0

30

Kohler 24 079 06

Linkage-Rod
(Superseded to 24 079 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$27.99

$

Usually ships in 2-5 days

0

31

Kohler 24 089 27

Spring-Linkage
(Superseded to 24 089 27-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

Usually ships in 2-5 days

0

32

Kohler 24 090 15

Lever-Linkage
(Superseded to 24 090 15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

Usually ships in 2-5 days

0

33

Kohler 24 337 30

Jet-Main
(Superseded to 24 337 30-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

Usually ships in 2-5 days

0

34

2408610

Screw, idle adjusting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

35

2408910

Spring-Idle Speed Adj.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

36

Kohler 24 757 01

Kit, solenoid asm. (Includes 37-42)
(Superseded to 24 757 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$227.99

$

In Stock, only 1 left!

0

37

Kohler 24 153 06

O-Ring
(Superseded to 24 153 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 7

0

38

2452101

Seat-Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

39

Kohler 24 153 05

O-Ring
(Superseded to 24 153 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 4 left!

0

40

Kohler 24 153 04

O-Ring
(Superseded to 24 153 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 1 left!

0

41

2443501

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

42

2408607

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

43

2408911

Spring-Idle Adj.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

44

2436801

Needle, idle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07

Kit, choke repair (Includes 17)
(Superseded to 24 757 07-S)

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 07

Kit, choke repair (Includes 17)
(Superseded to 24 757 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$95.99

$

In Stock, only 1 left!

0

2417302

Cap-Choke Lever

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
