74205 (Z 255) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) CONTROL PANEL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

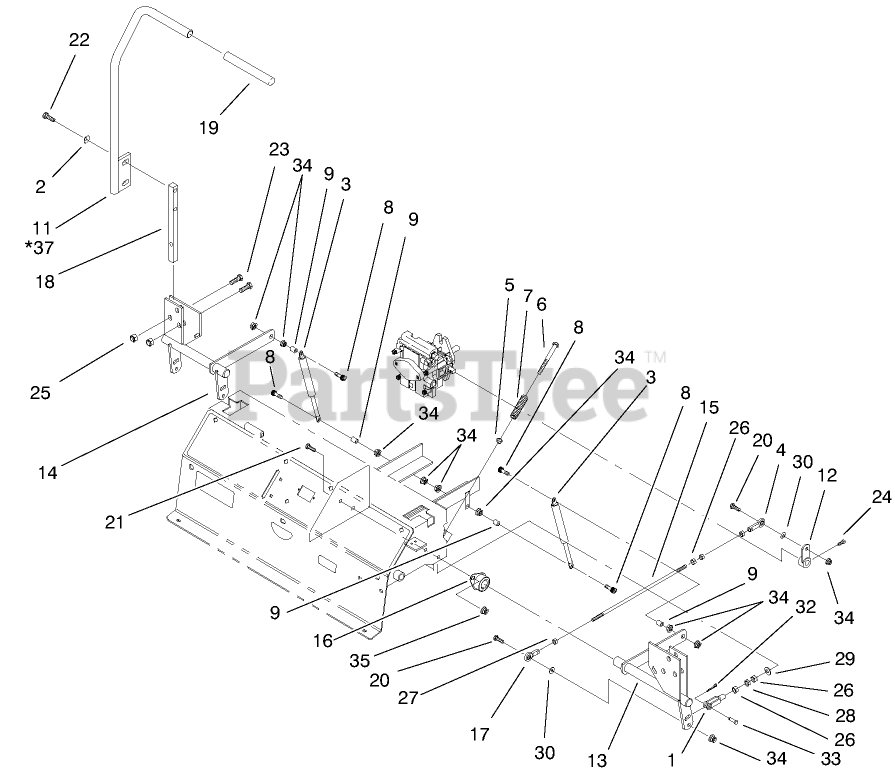

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro E303105

Yoke
(Superseded to 1-303105)

$12.99

$

In Stock, only 2 left!

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro E523027

Damper
(Superseded to 109-2339)

$76.99

$

In Stock, Qty 20+

0

4

Toro E543017

Ball Joint
(Superseded to 1-543017)

$20.99

$

In Stock, Qty 13

0

5

Toro E603735

Bushing
(Superseded to 1-603735)

$6.49

$

In Stock, only 4 left!

0

6

Toro E603737

Bolt
(Superseded to 1-603737)

$9.49

$

In Stock, only 4 left!

0

7

Toro E603807

Spring
(Superseded to 1-603807)

$3.49

$

In Stock, Qty 17

0

8

Toro E403180

Screw-HH
(Superseded to 1-403180)

$2.99

$

In Stock, Qty 20+

0

9

Toro E653299

Spacer-Damper
(Superseded to 1-603903)

$5.49

$

In Stock, Qty 20+

0

11

Toro E632193

Lever-RH
(Superseded to 1-634259)

$

$

Not available

12

Toro E632208

Arm-Pump Control
(Superseded to 1-632208)

$28.99

$

In Stock, Qty 20+

0

13

Toro E642319

Motion Contro, LH
(Superseded to 1-642319)

$223.99

$

Usually ships in 3-6 days

0

14

Toro E642320

Motion Control RH
(Superseded to 1-642320)

$177.99

$

Usually ships in 3-6 days

0

15

Toro E633153

Linkage
(Superseded to 1-633153)

$

$

Not available

16

Toro E633102

Bearing-Side Flange
(Superseded to 1-633102)

$18.99

$

In Stock, only 3 left!

0

17

Toro E633152

Ball Joint LH
(Superseded to 1-633152)

$20.99

$

In Stock, Qty 12

0

18

Toro E633177

Arm
(Superseded to 1-633177)

$63.99

$

Usually ships in 3-6 days

0

19

Toro E633257

Grip
(Superseded to 1-633257)

$14.99

$

In Stock, only 4 left!

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro E803022

Screw
(Superseded to 1-803022)

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

27

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

28

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Toro E808280

Pin-Clevis
(Superseded to 1-808280)

$2.99

$

In Stock, Qty 20+

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Toro E632191

Lever-LH
(Superseded to 1-634258)

Note: Not illustrated

$119.99

$

Usually ships in 3-6 days

0
