74205 (Z 255) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) COVER AND ROLLERS ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

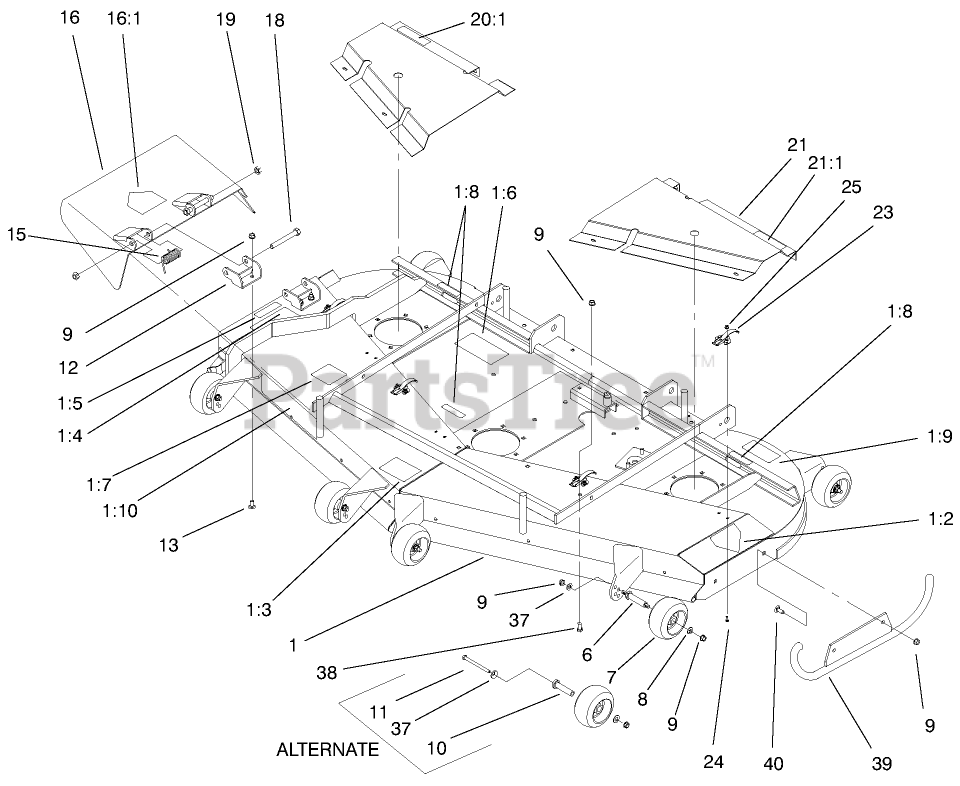

COVER AND ROLLERS ASSEMBLY Parts Diagram

  • Title

1

Toro 99-2621

DECK ASM
(Superseded to 105-1698)

$

$

Not available

1:2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:3

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

1:4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

1:5

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-3799

DECAL-BELT ROUTING

$

$

Not available

1:7

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

1:9

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

1:10

Toro 98-5995

DECAL-DECK

$

$

Not available

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

8

Toro E373034

Washer
(Superseded to 1-373034)

$3.49

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-3777

SPACER-WHEEL

$56.99

$

Usually ships in 3-6 days

0

11

Toro 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

12

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

13

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

15

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

16

Toro 14-0909

DEFLECTOR ASM

$403.99

$

Usually ships in 3-6 days

0

16:1

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

18

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

20:1

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

20

Toro 98-2622

Cover ASM RH
(Superseded to 99-2622)

$

$

Not available

21

Toro 99-2623

LH COVER W/DECAL ASM

$

$

Not available

21:1

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

23

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

24

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

25

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

39

Toro 98-7923

Skid
(Superseded to 98-7923-01)

$

$

Not available

40

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0
