74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) IDLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

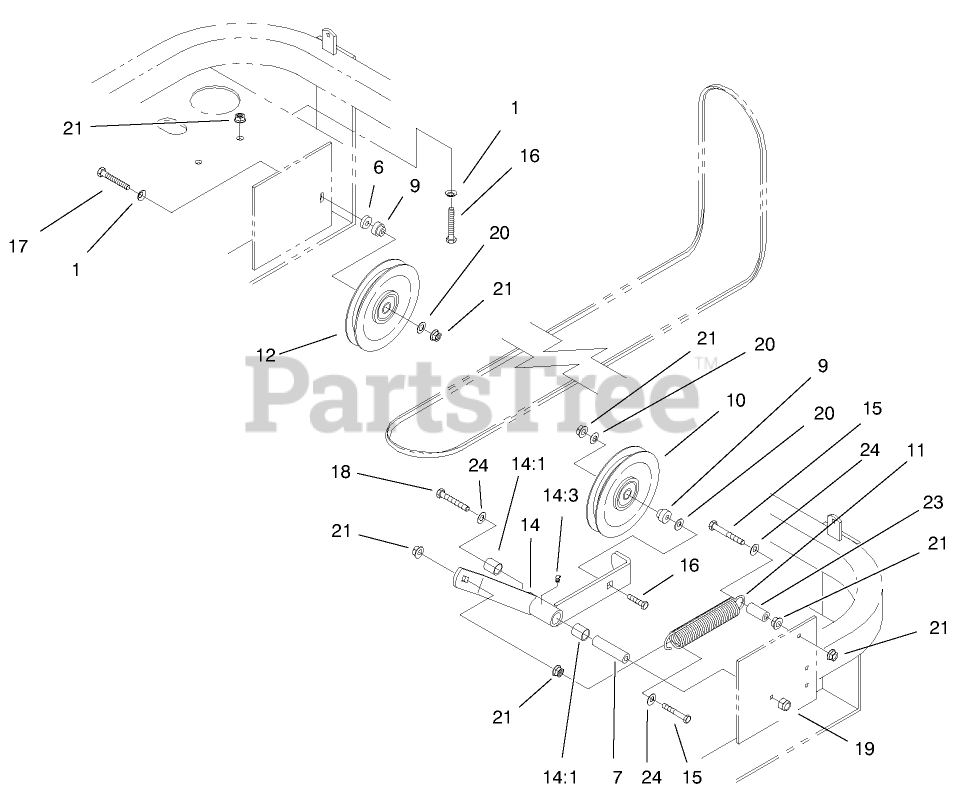

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro E603050

Spacer
(Superseded to 1-603050)

$7.99

$

In Stock, only 3 left!

0

7

Toro E603384

Bushing
(Superseded to 1-603384)

$14.99

$

In Stock, Qty 20+

0

9

Toro E603496

Bushing
(Superseded to 1-603496)

$5.49

$

In Stock, Qty 20+

0

10

Toro E603805

Idler
(Superseded to 1-603805)

$56.99

$

In Stock, Qty 14

0

11

Toro E603402

Spring
(Superseded to 1-603402)

$7.99

$

In Stock, only 3 left!

0

12

Toro E633166

Belt-Drive
(Superseded to 1-633166)

$59.99

$

Usually ships in 3-6 days

0

14

Toro 99-4677

IDLER ARM ASM

$131.99

$

In Stock, only 1 left!

0

14:1

Toro E513034

Bearing-Pivot
(Superseded to 1-513034)

$7.49

$

In Stock, Qty 20+

0

14:3

Toro E811008

Zerk-Grease
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

18

Toro E800805

Screw-HH
(Superseded to 1-800805)

$5.49

$

In Stock, only 4 left!

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro E603401

Spacer-Fender
(Superseded to 1-603401)

$6.99

$

In Stock, Qty 8

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+
