74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099004001 - 099999999) (1999) GROUP 10-AIR INTAKE/FILTRATION (CH25S 68606 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

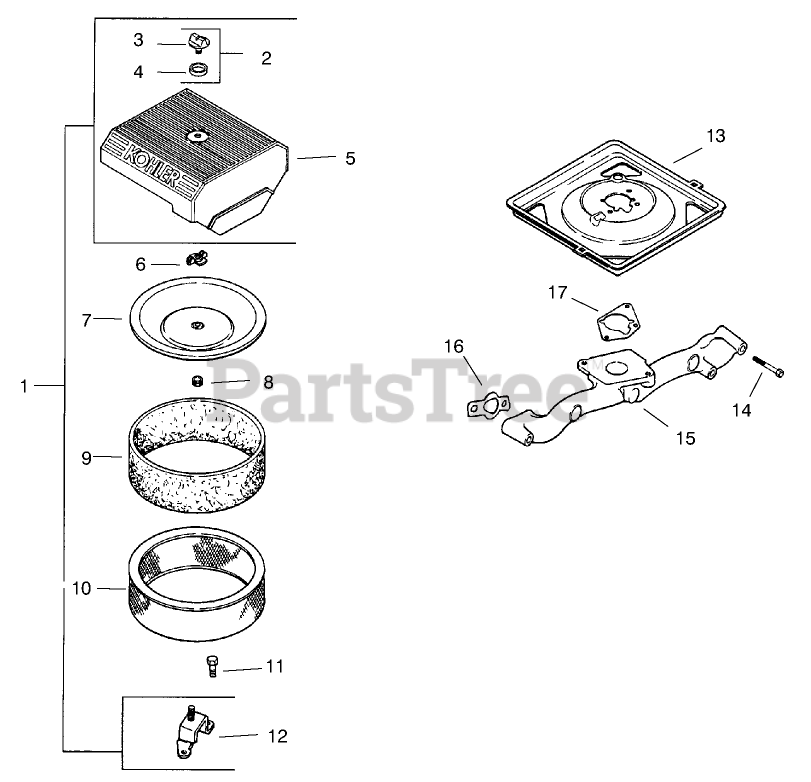

GROUP 10-AIR INTAKE/FILTRATION (CH25S 68606 KOHLER) Parts Diagram

  • Title

1

Toro 24 753 05

Kit, air cleaner (Includes 2-5, 12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

5475501

Kit, air cleaner knob (Includes 3,4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

2534103

Knob-Cover

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

2415315

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2409624

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

8

Kohler 230046

Seal
(Superseded to 230046-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

9

Kohler 24 083 05

Precleaner-Element
(Superseded to 24 083 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

Usually ships in 2-5 days

0

10

2408303

Element, air cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

12

2412643

Bracket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2409411

Base, air cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14

Manifold
(Superseded to 24 164 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0
