74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099004000) (1999) FRONT FRAME ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

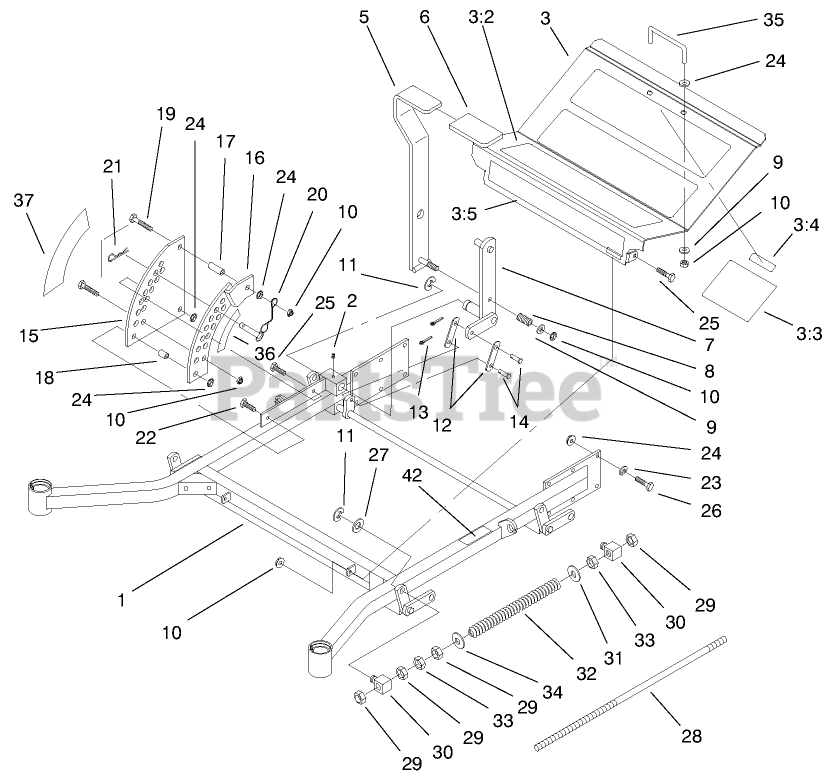

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro E634861

Frame ASM
(Superseded to 1-634861)

$905.99

$

Usually ships in 3-6 days

0

2

Toro 320-19

Fitting-Grease
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

3

Toro 99-4622

FLOORPAN ASM

$

$

Not available

3:2

Toro E633553

Pad-Antiskid
(Superseded to 1-633553)

$13.99

$

In Stock, only 4 left!

0

3:3

Toro E633766

Decal-Check
(Superseded to 1-633766)

$

$

Not available

3:4

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

3:5

Toro E633737

Decal-Z-Master
(Superseded to 1-633737)

$51.99

$

Usually ships in 3-6 days

0

5

Toro E632324

Lever-Lift
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Toro E633295

Grip-Lift Lever
(Superseded to 1-633295)

$7.99

$

In Stock, Qty 12

0

7

Toro E632219

Arm-Deck Lift
(Superseded to 109-0632)

$106.99

$

Usually ships in 3-6 days

0

8

Toro E633325

Spring-Compression
(Superseded to 1-633325)

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

11

Toro E808505

Ring-Snap
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

12

Toro E633068

Arm-Deck Lift
(Superseded to 1-633068)

$11.99

$

Usually ships in 3-6 days

0

13

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

14

Toro E808284

Pin
(Superseded to 1-808284)

$3.49

$

In Stock, Qty 20+

0

15

Toro E633889

Plate-Deck Lift
(Superseded to 1-633889-01)

$

$

Not available

16

Toro E632899

Plate-Deck Lift
(Superseded to 1-632899-01)

$

$

Not available

17

Toro E633082

Bushing
(Superseded to 1-633082)

$11.99

$

Usually ships in 3-6 days

0

18

Toro E633080

Bushing
(Superseded to 1-633080)

$10.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

20

Toro E633097

Hitch Pin w/Lanyard
(Superseded to 1-633097)

$24.99

$

In Stock, only 2 left!

0

21

Toro E806005

Hairpin
(Superseded to 1-806005)

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

28

Toro E633096

Rod-Deck Lift
(Superseded to 1-633096)

$23.99

$

In Stock, Qty 8

0

29

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Toro E633441

Swivel-Deck Mount
(Superseded to 1-633441)

$27.99

$

Usually ships in 3-6 days

0

31

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Toro E653009

Spring-Lift Assist
(Superseded to 1-653009)

$17.99

$

Usually ships in 3-6 days

0

33

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

34

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

35

Toro E633587

Handle
(Superseded to 1-633587)

$

$

Not available

36

Toro E633706

Decal-HOC
(Superseded to 1-633706)

$3.99

$

In Stock, Qty 15

0

37

Toro E633345

Decal-HOC
(Superseded to 1-633345)

$

$

Not available

42

Toro E633818

Decal
(Superseded to 1-633818)

$7.49

$

Usually ships in 3-6 days

0
