74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099004000) (1999) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

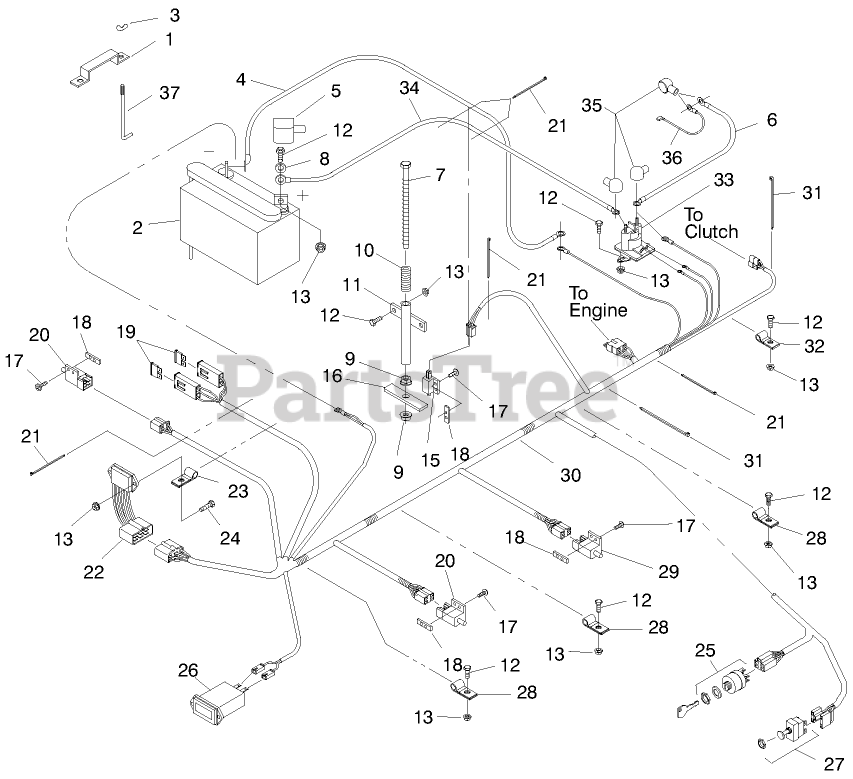

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro E633652

Strap-Hold Down
(Superseded to 1-633652-03)

$21.99

$

In Stock, only 3 left!

0

2

Toro E603479

Battery
(Superseded to 105-1692)

$

$

Not available

3

Toro E543792

Wingnut
(Superseded to 1-543792)

$6.49

$

In Stock, Qty 15

0

4

Toro E633307

Wire-Ground
(Superseded to 1-633307)

$41.99

$

In Stock, only 3 left!

0

5

Toro E543391

Insulator Battery
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

6

Toro E633306

Wire-Starter
(Superseded to 109-7620)

$25.99

$

In Stock, only 1 left!

0

7

Toro E800282

Screw
(Superseded to 1-800282)

$5.49

$

In Stock, only 1 left!

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro E523415

Spring
(Superseded to 1-523415)

$33.99

$

In Stock, only 1 left!

0

11

Toro E522424

Mount-Spring
(Superseded to 1-522424-03)

$37.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

15

Toro E513152

Switch-Seat
(Superseded to 1-513152)

$13.99

$

In Stock, Qty 15

0

16

Toro E513180

Actuator-Switch
(Superseded to 1-513180)

$17.99

$

In Stock, only 3 left!

0

17

Toro E803028

Screw
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

18

Toro E633181

Plate
(Superseded to 1-633181)

$6.49

$

In Stock, only 2 left!

0

19

Toro E816001

Fuse
(Superseded to 1-816001)

$6.49

$

In Stock, Qty 13

0

20

Toro E633111

Switch-Drive Lever
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

21

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

22

Toro E543316

Module-Safety
(Superseded to 1-543316)

$189.99

$

In Stock, only 1 left!

0

23

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro E543070

Ignition Switch
(Superseded to 1-543070)

$44.99

$

In Stock, only 2 left!

0

26

Toro E513374

Meter-Hour
(Superseded to 1-513374)

$69.99

$

In Stock, only 1 left!

0

27

Toro E633673

Switch
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

28

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

29

Toro E633110

Switch-Brake
(Superseded to 1-633110)

$22.99

$

In Stock, only 2 left!

0

30

Toro E643119

Harness
(Superseded to 1-643119)

$

$

Not available

31

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

32

Toro E323229

Clip
(Superseded to 1-323229)

$2.99

$

Usually ships in 3-6 days

0

33

Toro E513075

Switch-Solenoid
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 19

0

34

Toro E523281

Wire
(Superseded to 109-7630)

$43.99

$

In Stock, only 2 left!

0

35

Toro E543393

Insulator Solenoid
(Superseded to 1-543393)

$5.49

$

In Stock, only 2 left!

0

36

Toro E543084

Wire-Starter Solonoi
(Superseded to 1-543084)

$

$

Not available

37

Toro E633651

Bolt
(Superseded to 1-633651)

$7.99

$

In Stock, Qty 9

0
