74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099001999) (1999) COVER AND ROLLERS ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

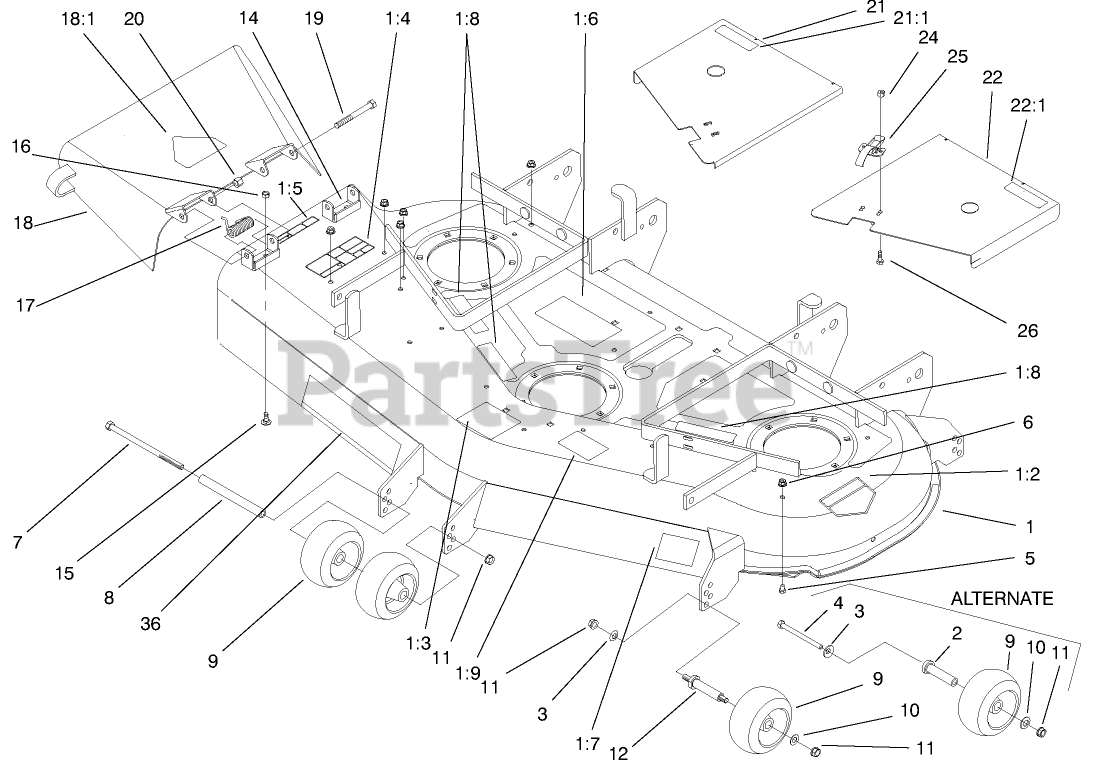

COVER AND ROLLERS ASSEMBLY Parts Diagram

  • Title
1

Toro 99-4588

Deck ASM
(Superseded to 106-5879)

$

$

Not available

1:2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:3

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

1:4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

1:5

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-3799

DECAL-BELT ROUTING

$

$

Not available

1:7

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

1:9

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

2

Toro 98-3777

SPACER-WHEEL

$56.99

$

Usually ships in 3-6 days

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

5

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

6

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

8

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

9

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

10

Toro E373034

Washer
(Superseded to 1-373034)

$3.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

14

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

15

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

18

Toro 98-5984

DEFLECTOR ASM, 52" W/DECAL

$192.99

$

Usually ships in 3-6 days

0

18:1

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

19

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

20

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

21

Toro 98-5963

COVER ASM-RH

$

$

Not available

21:1

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

22

Toro 98-5965

LH COVER ASM

$

$

Not available

22:1

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

25

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

26

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

36

Toro 98-5953

DECAL

$68.99

$

Usually ships in 3-6 days

0
