74203 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099004000) (1999) DEFLECTOR, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

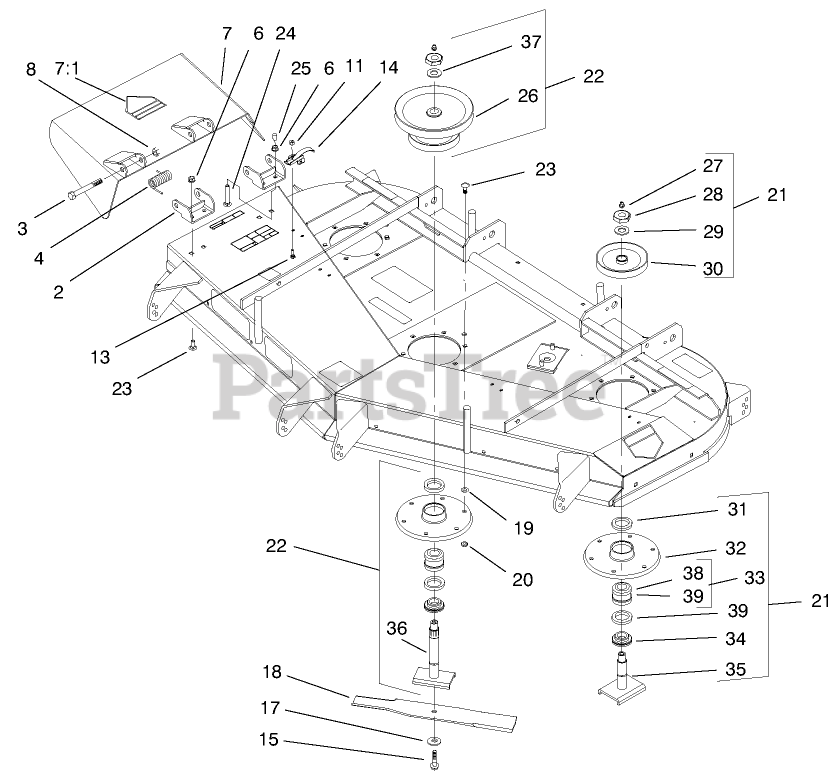

DEFLECTOR, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title
2

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

3

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

4

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 14-0909

DEFLECTOR ASM

$403.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

13

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

15

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

17

Toro E513435

Washer-Flat
(Superseded to 1-513435)

$5.49

$

In Stock, Qty 13

0

18

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$26.99

$

In Stock, only 3 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 44-6370

Spindle Housing ASM (Incl. Ref.#27-35)

$

$

Not available

22

Toro 98-3755

Spindle Housing ASM (Incl. Ref.#26-39)

$1346.99

$

Usually ships in 3-6 days

0

23

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

24

Toro 3231-33

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

25

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-3754

WA - PULLEY & HUB

$

$

Not available

27

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

28

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

29

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

30

Toro 99-4614

PULLEY AND HUB ASM

$115.99

$

Usually ships in 3-6 days

0

31

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

32

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

33

Toro 46-8530

Bearing ASM (Incl. Ref.#38,39)

$109.99

$

In Stock, only 4 left!

0

34

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

35

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

36

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$206.99

$

In Stock, only 1 left!

0

37

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

38

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

39

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0
