74203 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099001999) (1999) REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

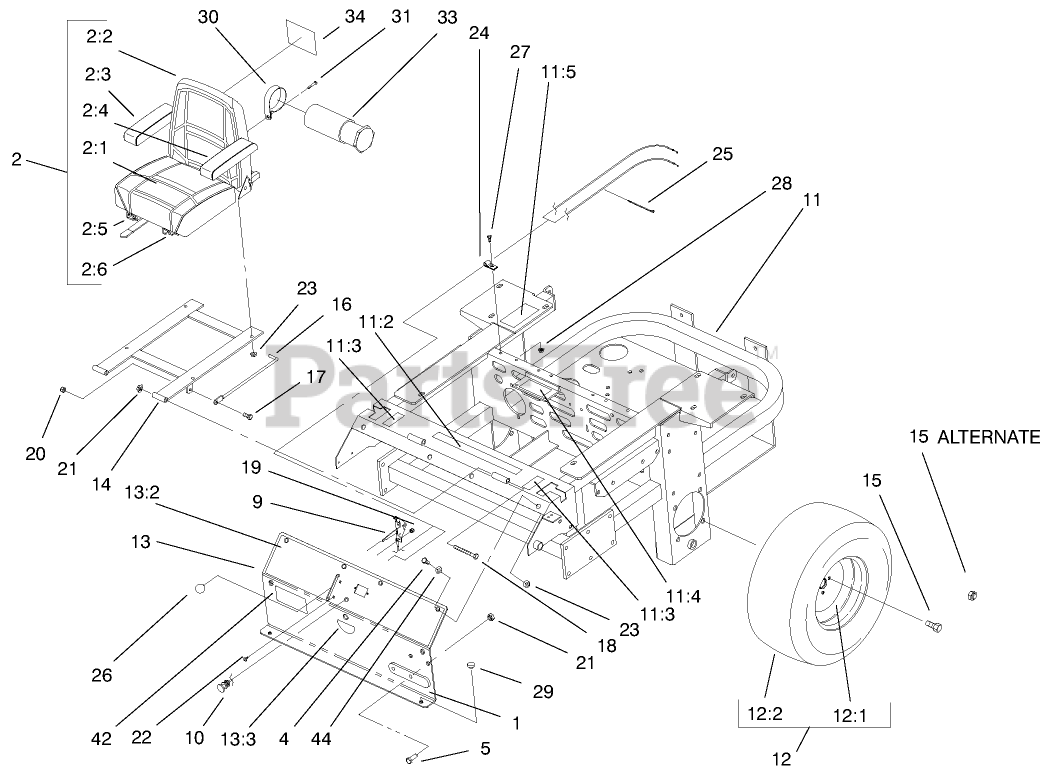

REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro E633964

Stop-Park Brake
(Superseded to 1-633964-03)

$12.99

$

Usually ships in 3-6 days

0

2

Toro E633705

Seat ASM
(Superseded to 1-633705)

$1406.99

$

Usually ships in 3-6 days

0

2:1

Toro E543407

Cushion
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

2:2

Toro E633709

Cushion
(Superseded to 104-7754)

$514.99

$

In Stock, only 2 left!

0

2:3

Toro E633710

Armrest
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

2:4

Toro E633711

Armrest
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

2:5

Toro E543401

Spacer-Track
(Superseded to 1-543401)

$5.49

$

In Stock, Qty 8

0

2:6

Toro E523428

Track-Locking, 4"
(Superseded to 1-523428)

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro E633696

Cable
(Superseded to 1-633696)

$62.99

$

In Stock, only 2 left!

0

10

Toro E603336

Cable-Choke
(Superseded to 1-603336)

$41.99

$

In Stock, only 2 left!

0

11

Toro 99-4624

FRAME ASM

$4465.99

$

Usually ships in 3-6 days

0

11:2

Toro E513747

Decal-Battery
(Superseded to 1-513747)

$7.49

$

Usually ships in 3-6 days

0

11:3

Toro E633354

Decal-Motion Control
(Superseded to 1-633354)

$

$

Not available

11:4

Toro E513929

Decal-Drive Release
(Superseded to 1-513929)

$

$

Not available

11:5

Toro E633771

Decal-Belt Pump
(Superseded to 1-633771)

$

$

Not available

12

Toro E633007

Wheel & Tire ASM
(Superseded to 109-3339)

$

$

Not available

12:1

Toro E633009

Wheel
(Superseded to 109-3338)

$

$

Not available

12:2

Toro E633008

Tire
(Superseded to 87-3290)

$

$

Not available

13

Toro 99-4623

CONSOLE ASM

$

$

Not available

13:2

Toro 99-4611

DECAL-CONTROL PANEL

$45.99

$

Usually ships in 3-6 days

0

13:3

Toro E633346

Decal-Fuel Valve
(Superseded to 1-633346)

$8.49

$

Usually ships in 3-6 days

0

14

Toro E632187

Frame-Seat
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro E513011

Nut
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

15

Toro E633273

Wheel Bolt
(Superseded to 1-633273)

$6.99

$

Usually ships in 3-6 days

0

16

Toro E633293

Rod-Seat Holdup
(Superseded to 1-633293)

$15.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

19

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

20

Toro 32146-4

NUT-LOCK NI

$

$

Not available

21

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

22

Toro E807513

Bolt-CARR
(Superseded to 1-807513)

$2.99

$

In Stock, Qty 15

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

25

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Toro E513592

Knob
(Superseded to 1-513592)

$6.99

$

In Stock, Qty 10

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

29

Toro E513658

Bumper
(Superseded to 1-513658)

$6.49

$

In Stock, Qty 11

0

30

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

31

Toro E803060

Screw

$

$

Currently unavailable

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

34

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

42

Toro E633736

Decal-Z255
(Superseded to 1-633736)

$12.99

$

In Stock, only 2 left!

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
