74203 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099001999) (1999) CASTER AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

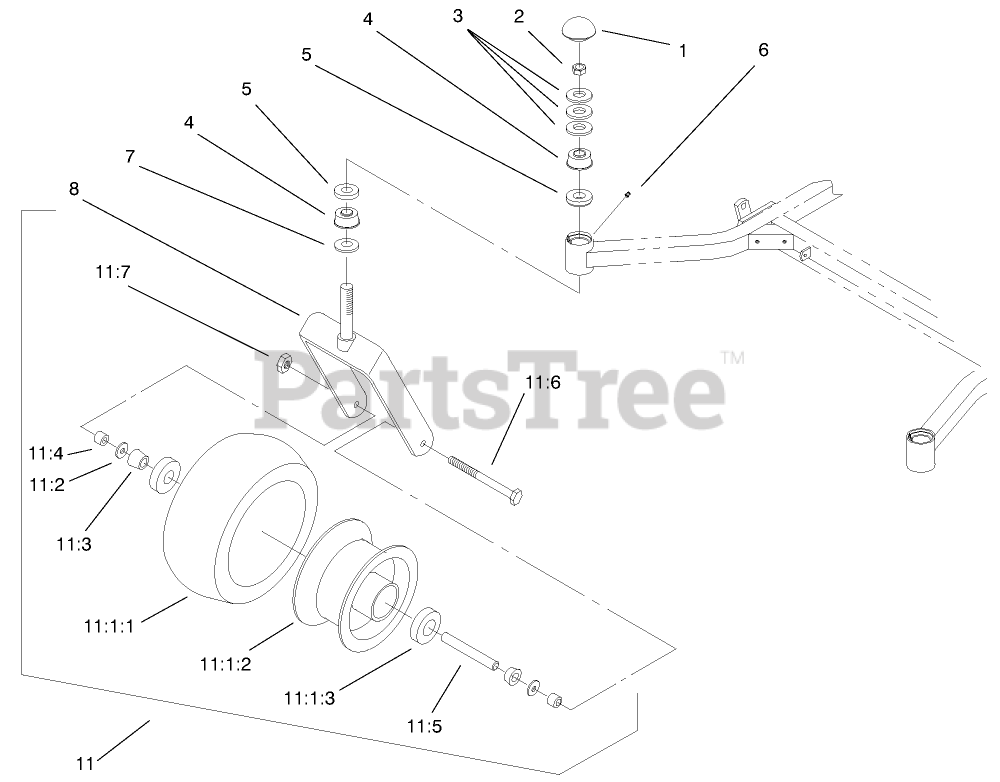

CASTER AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro E543513

Cap-Grease
(Superseded to 1-543513)

$8.49

$

In Stock, Qty 20+

0

2

Toro 32146-14

LOCKNUT
(Superseded to 3296-51)

$6.49

$

In Stock, Qty 20+

0

3

Toro E633508

Washer-Bellevue
(Superseded to 1-633508)

$3.49

$

In Stock, Qty 20+

0

4

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

5

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

6

Toro E811010

Plug
(Superseded to 1-811010)

$5.49

$

In Stock, Qty 11

0

7

Toro E543511

Seal-Grease
(Superseded to 1-543511)

$12.99

$

In Stock, Qty 20+

0

8

Toro E632511

Caster
(Superseded to 116-8883)

$155.99

$

In Stock, only 4 left!

0

11

Toro E634662

Caster Wheel ASM
(Superseded to 1-634662)

$246.99

$

In Stock, only 2 left!

0

11:1:1

Toro E633002

Tire
(Superseded to 1-633002)

$99.99

$

Usually ships in 3-6 days

0

11:1:2

Toro E633583

Wheel
(Superseded to 1-633583)

$108.99

$

Usually ships in 3-6 days

0

11:1:3

Toro 254-79

BEARING-ROLLER, CUP

$7.49

$

In Stock, Qty 12

0

11:2

Toro E633580

Seal-Bearing
(Superseded to 1-633580)

$9.49

$

In Stock, Qty 8

0

11:3

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 17

0

11:4

Toro E633581

Spacer-Bearing
(Superseded to 1-633581)

$4.99

$

In Stock, Qty 20+

0

11:5

Toro E633579

Spacer
(Superseded to 1-633579)

$14.99

$

In Stock, only 2 left!

0

11:6

Toro E800339

Screw-HH
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

11:7

Toro E804269

Nut-Lock
(Superseded to 3296-45)

$4.49

$

In Stock, Qty 20+

0

11:1

Toro E633582

Wheel & Tire ASM
(Superseded to 1-633582)

$153.99

$

In Stock, only 1 left!

0
