74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099004001 - 099999999) (1999) SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

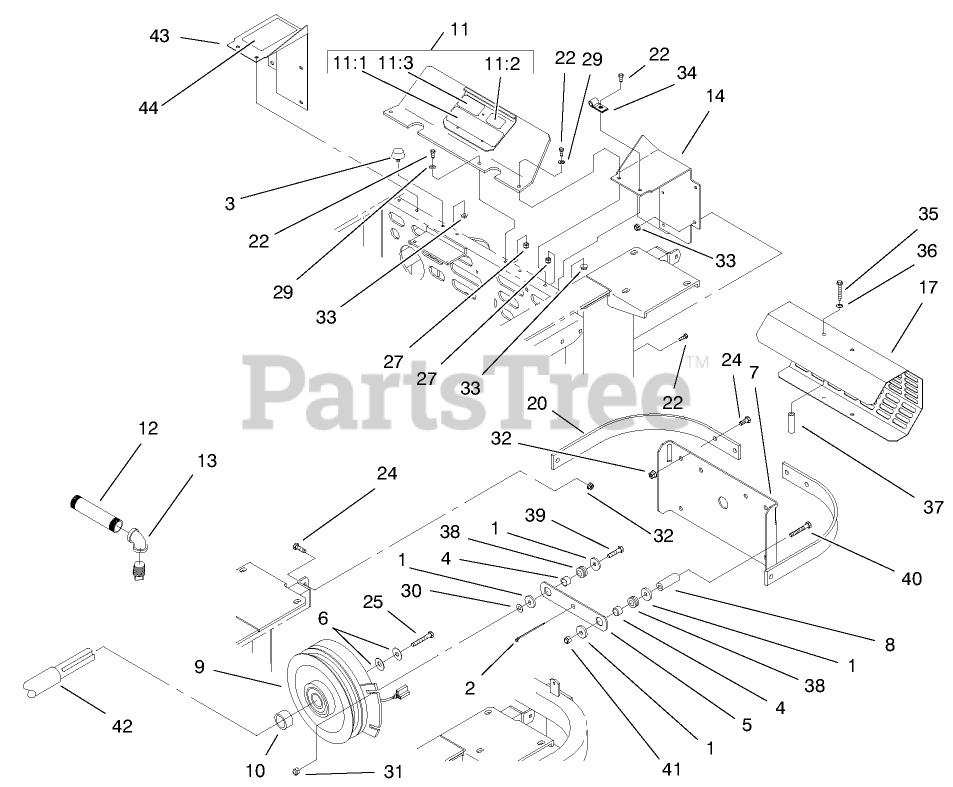

SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro E613235

Washer
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 11

0

2

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

3

Toro E523420

Bumper
(Superseded to 1-523420)

$15.99

$

Usually ships in 3-6 days

0

4

Toro E633545

Spacer
(Superseded to 1-633545)

$2.99

$

In Stock, Qty 20+

0

5

Toro E633543

Strap
(Superseded to 1-633543-03)

$15.99

$

In Stock, only 2 left!

0

6

Toro E603610

Disc-Spring
(Superseded to 1-603610)

$5.49

$

In Stock, Qty 20+

0

7

Toro E633615

Guard
(Superseded to 1-633615-03)

$96.99

$

Usually ships in 3-6 days

0

8

Toro E633988

Spacer
(Superseded to 1-633988)

$13.99

$

In Stock, only 2 left!

0

9

Toro E633098

Clutch
(Superseded to 103-0662)

$534.99

$

In Stock, only 1 left!

0

10

Toro E633453

Spacer
(Superseded to 1-633453)

$20.99

$

In Stock, only 2 left!

0

11

Toro E634862

Shield ASM
(Superseded to 1-634862)

$

$

Not available

11:1

Toro E643252

Decal-Belt, Drive
(Superseded to 1-643252)

$

$

Not available

11:2

Toro E513748

Decal-Guard
(Superseded to 1-513748)

$5.49

$

In Stock, Qty 6

0

11:3

Toro E633462

Decal-Important
(Superseded to 1-633462)

$5.49

$

In Stock, only 3 left!

0

12

Toro E543232

Nipple
(Superseded to 1-543232)

$22.99

$

Usually ships in 3-6 days

0

13

Toro E303428

Elbow
(Superseded to 1-303428)

$

$

Not available

14

Toro E634796

Shield-LH
(Superseded to 1-634796)

$

$

Not available

17

Toro E633466

Guard-Muffler
(Superseded to 1-643313-03)

$120.99

$

In Stock, Qty 5

0

20

Toro E633613

Bracket-Guard

$

$

Currently unavailable

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 10

0

27

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

35

Toro E809076

Screw-HH
(Superseded to 1-809076)

$2.99

$

In Stock, Qty 13

0

36

Toro E323235

Washer-Lock
(Superseded to 1-323235)

$5.49

$

In Stock, Qty 20+

0

37

Toro E323236

Spacer
(Superseded to 1-323236)

$8.49

$

In Stock, Qty 13

0

38

Toro E633630

Grommet
(Superseded to 1-633630)

$5.99

$

In Stock, Qty 8

0

39

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

40

Toro 322-19

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro E643026

Kohler Command

$

$

Currently unavailable

43

Toro E634797

Shield-RH
(Superseded to 1-644316)

$

$

Not available

44

Toro E633771

Decal-Belt Pump
(Superseded to 1-633771)

$

$

Not available
