74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099004001 - 099999999) (1999) GROUP 6-BLOWER HOUSING & BAFFLES (CH22S 76513 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

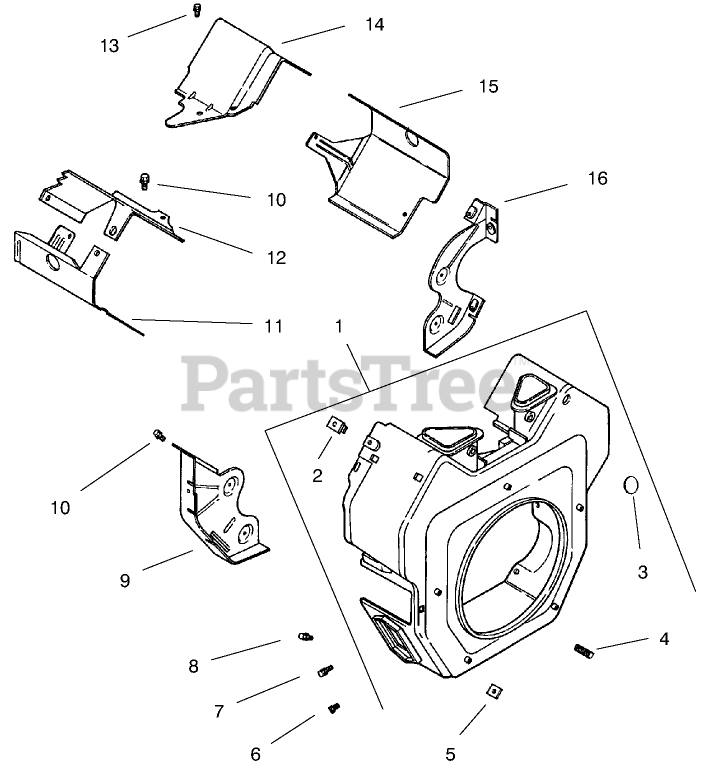

GROUP 6-BLOWER HOUSING & BAFFLES (CH22S 76513 KOHLER) Parts Diagram

  • Title

1

2402783

Housing, blower (Includes 2-5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

3

2475590

Kit, button plug

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

2508643

Screw-Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

6

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

7

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

8

Toro M-0567020

Screw-HF

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

9

2414602

Plate-Backing #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 15

0

11

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

13

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

14

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

15

2406330

Baffle-Cyl. #1 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

2414608

Plate-Backing #1

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411362

Decal, HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411362

Decal, HP

Note: Not illustrated

$

$

Not available
