74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099004001 - 099999999) (1999) BELTS AND IDLER ARM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

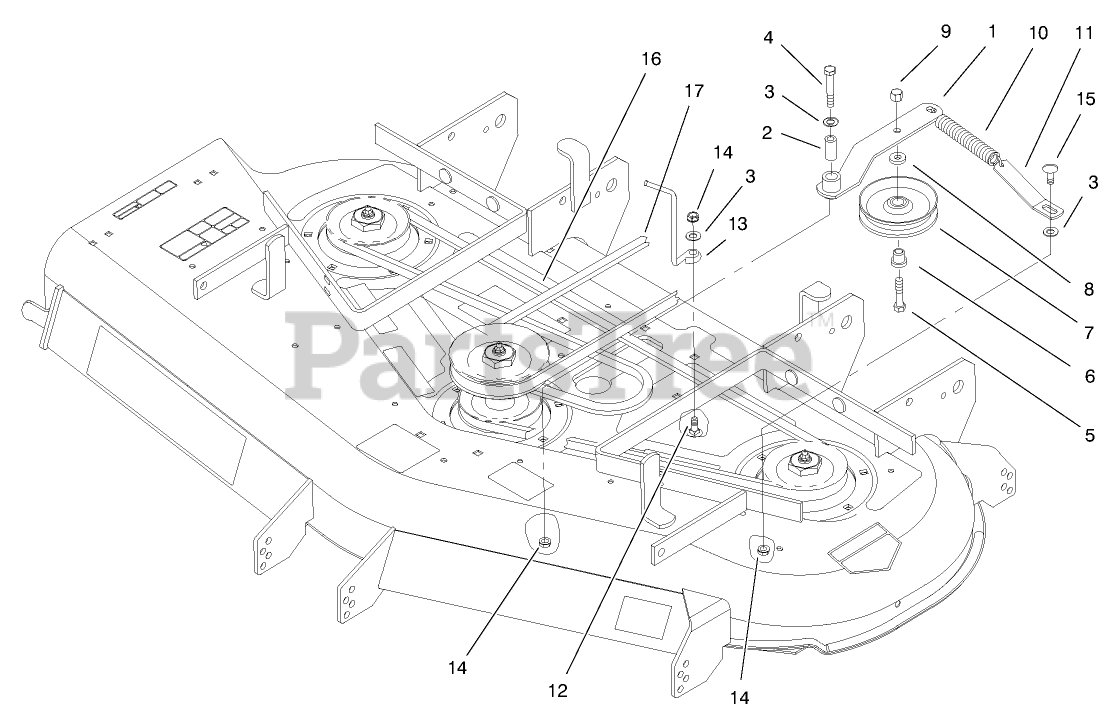

BELTS AND IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 55-7640-03

IDLER ARM ASM

$135.99

$

In Stock, only 2 left!

0

2

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 14

0

5

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 8

0

6

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

7

Toro 65-5940

PULLEY-IDLER

$40.99

$

In Stock, only 4 left!

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 10

0

9

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 51-3650

SPRING-EXTENSION

$25.99

$

In Stock, Qty 5

0

11

Toro 55-7650

PLATE-SPRING

$25.99

$

In Stock, Qty 9

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 98-5980

GUIDE-BELT

$87.99

$

In Stock, only 1 left!

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

16

Toro 27-1160

V-BELT

$59.99

$

In Stock, Qty 9

0

17

Toro 100-2314

BELT (52)

$248.99

$

In Stock, only 1 left!

0
