74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) IDLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

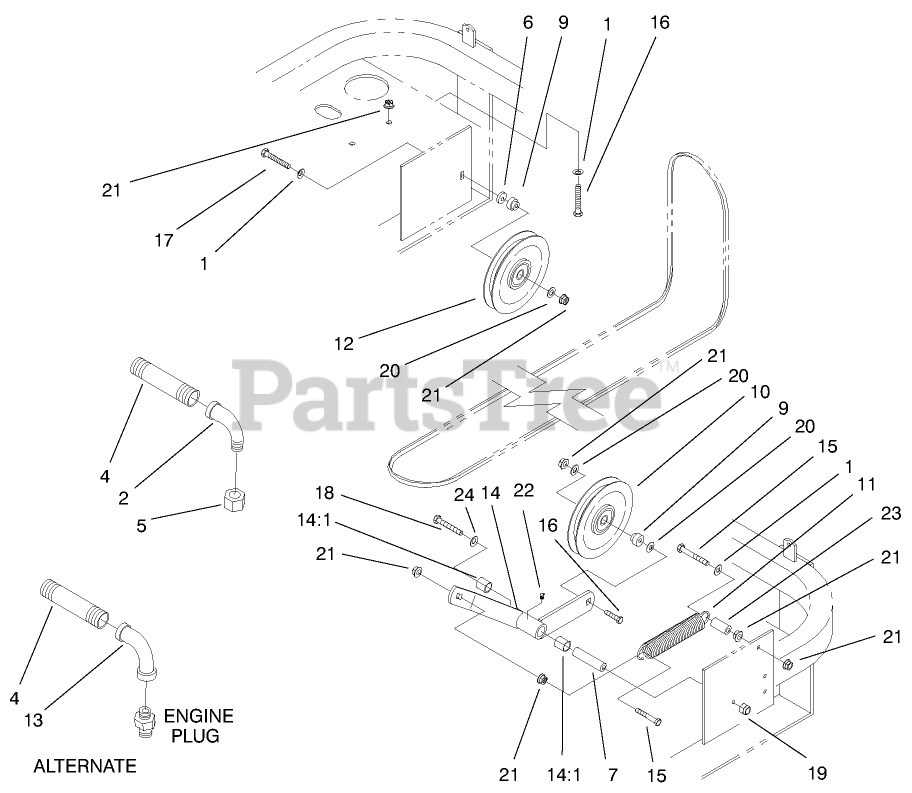

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

2

Toro E403124

Elbow Street
(Superseded to 1-403124)

$

$

Not available

4

Toro E543232

Nipple
(Superseded to 1-543232)

$21.99

$

Usually ships in 3-6 days

0

5

Toro E543233

Cap
(Superseded to 1-543233)

$

$

Not available

6

Toro E603050

Spacer
(Superseded to 1-603050)

$7.99

$

In Stock, only 2 left!

0

7

Toro E603384

Bushing
(Superseded to 1-603384)

$14.99

$

In Stock, Qty 18

0

9

Toro E603496

Bushing
(Superseded to 1-603496)

$7.49

$

In Stock, Qty 20+

0

10

Toro E603805

Idler
(Superseded to 1-603805)

$54.99

$

In Stock, Qty 12

0

11

Toro E603402

Spring
(Superseded to 1-603402)

$7.99

$

In Stock, only 3 left!

0

12

Toro E633166

Belt-Drive
(Superseded to 1-633166)

$56.99

$

In Stock, only 3 left!

0

13

Toro E303428

Elbow
(Superseded to 1-303428)

$

$

Not available

14

Toro E632469

Arm ASM
(Superseded to 1-632469)

$116.99

$

In Stock, only 2 left!

0

14:1

Toro E513034

Bearing-Pivot
(Superseded to 1-513034)

$7.49

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

18

Toro E800805

Screw-HH
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

19

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro E811008

Zerk-Grease
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

23

Toro E603401

Spacer-Fender
(Superseded to 1-603401)

$6.99

$

In Stock, Qty 8

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
