74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) GROUP 2-CRANKCASE (CH22S 76513 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

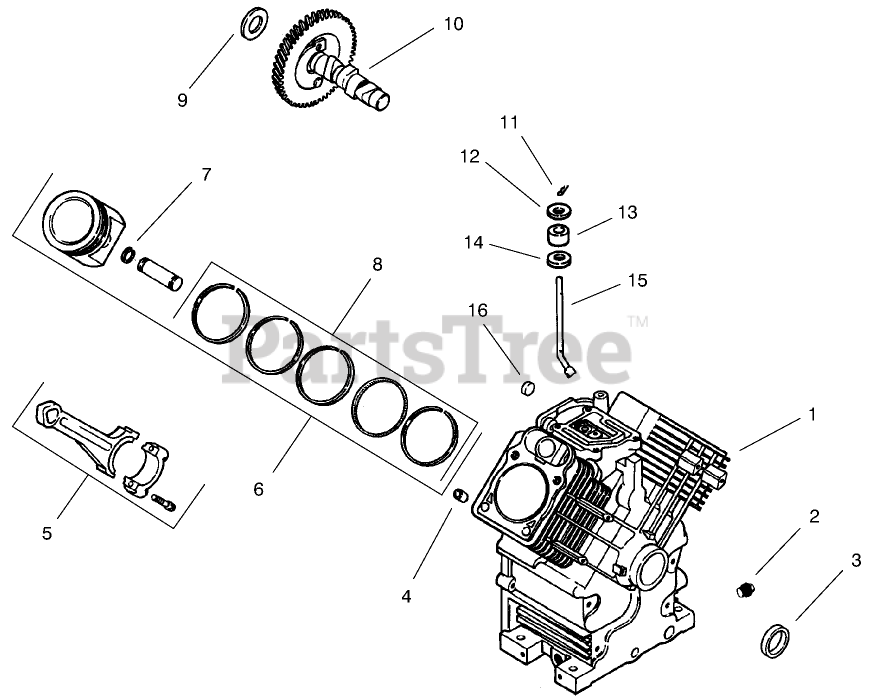

GROUP 2-CRANKCASE (CH22S 76513 KOHLER) Parts Diagram

  • Title

1

Crankcase

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, Qty 20+

0

4

1238017

Dowel-Locating

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 067 13

Rod-Connecting (Standard)
(Superseded to 24 067 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, Qty 6

0

Kohler 24 067 14

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, only 1 left!

0

6

Toro 24 874 09

Piston w/Ring Set (Std.)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Toro 24 874 10

Piston w/Ring Set (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Toro 24 874 11

Piston w/Ring Set (.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

8

Toro 24 108 08

Ring Set (Standard)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Toro 24 108 09

Ring Set (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Toro 24 108 10

Ring Set (.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10

Camshaft
(Superseded to 24 012 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$138.99

$

Usually ships in 2-5 days

0

11

1238004

Pin-Hitch

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

13

1203201

Seal-Cross Shaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

15

2414401

Shaft-Governor Cross

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0
