74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) FRAME AND DECK Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

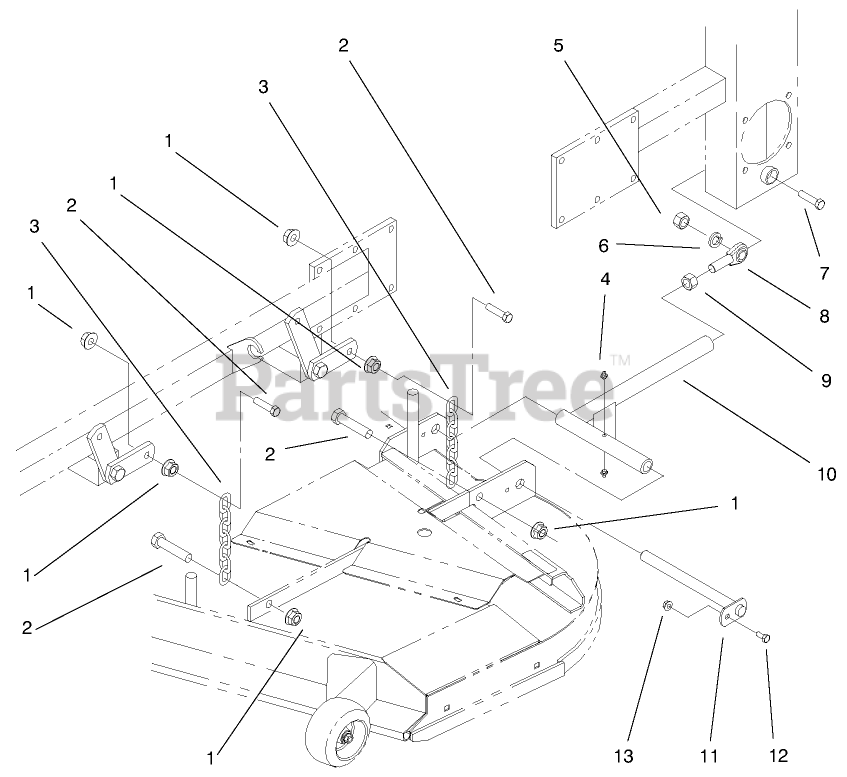

FRAME AND DECK Parts Diagram

  • Title
1

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

2

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro E633447

Chain-Lift
(Superseded to 1-633447)

$10.99

$

In Stock, Qty 16

0

4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

5

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 327-11

SCREW-HH

$11.99

$

In Stock, Qty 12

0

8

Toro E633029

Rod End
(Superseded to 1-633029)

$64.99

$

In Stock, Qty 12

0

9

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro E632690

Strut
(Superseded to 109-1181)

$100.99

$

In Stock, Qty 9

0

11

Toro E632199

Pin-Strut
(Superseded to 1-632199-01)

$35.99

$

In Stock, Qty 12

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
