74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) DEFLECTOR, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

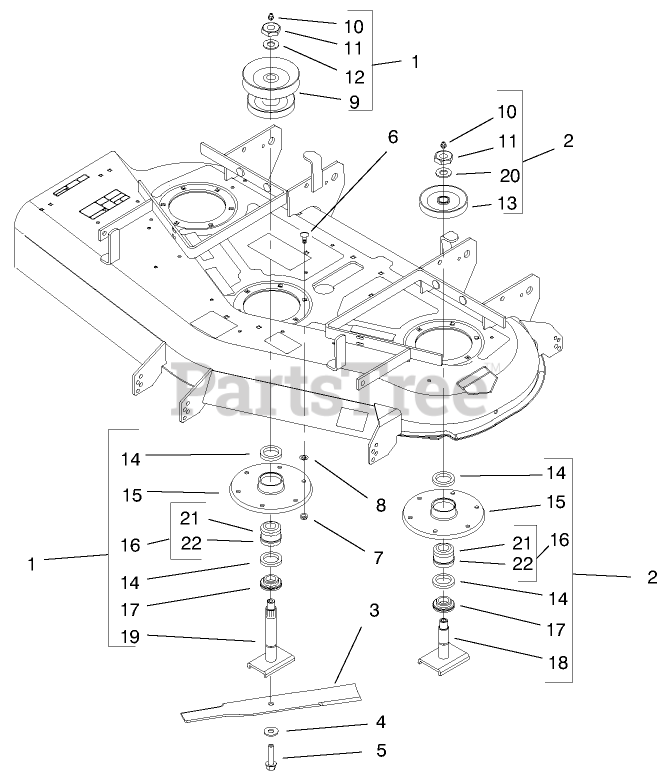

DEFLECTOR, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 98-5974

Spindle ASM (Incl. Ref. #9-12, 14-17, 19)

$1365.99

$

Usually ships in 3-6 days

0

2

Toro 27-0870-03

Spindle ASM (Inc. Ref. #10, 11, 13-18, 20)
(Superseded to 27-0870)

$548.99

$

Usually ships in 3-6 days

0

3

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

4

Toro E513435

Washer-Flat
(Superseded to 1-513435)

$5.49

$

In Stock, Qty 13

0

5

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

6

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-3772

WA - PULLEY/HUB

$

$

Not available

10

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

11

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 6

0

12

Toro 92-5836

WASHER

$5.99

$

Usually ships in 3-6 days

0

13

Toro 99-4613

PULLEY & HUB

$86.99

$

Usually ships in 3-6 days

0

14

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

15

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

16

Toro 46-8530

Bearing ASM (Incl. Ref. #21-22)

$109.99

$

In Stock, only 4 left!

0

17

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

18

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

19

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$206.99

$

In Stock, only 1 left!

0

20

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

21

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

22

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0
