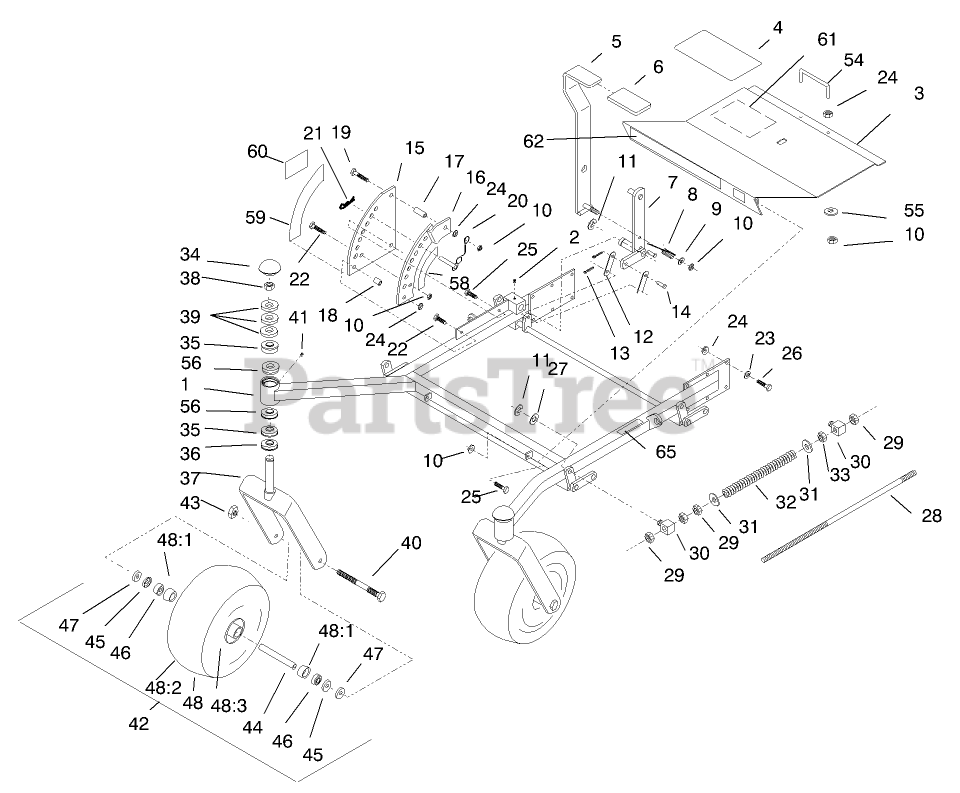

74201 (Z 255) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000001 - 089999999) (1998) FRONT FRAME Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

FRONT FRAME Parts Diagram

  • Title

1

Toro E632721

Frame-Front
(Superseded to 1-632721-01)

$

$

Not available

2

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

3

Toro E633783

Floorpan
(Superseded to 1-633783-01)

$

$

Not available

4

Toro E633553

Pad-Antiskid
(Superseded to 1-633553)

$13.99

$

In Stock, only 4 left!

0

5

Toro E632324

Lever-Lift
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Toro E633295

Grip-Lift Lever
(Superseded to 1-633295)

$7.99

$

In Stock, only 3 left!

0

7

Toro E632219

Arm-Deck Lift
(Superseded to 109-0632)

$96.99

$

Usually ships in 3-6 days

0

8

Toro E633325

Spring-Compression
(Superseded to 1-633325)

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

10

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

11

Toro E808505

Ring-Snap
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 7

0

12

Toro E633068

Arm-Deck Lift
(Superseded to 1-633068)

$11.99

$

Usually ships in 3-6 days

0

13

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

14

Toro E808284

Pin
(Superseded to 1-808284)

$3.49

$

In Stock, only 4 left!

0

15

Toro E633072

Plate-Deck Lift
(Superseded to 1-633072-01)

$

$

Not available

16

Toro E632195

Plate-Deck Lift
(Superseded to 1-631981)

$

$

Not available

17

Toro E633082

Bushing
(Superseded to 1-633082)

$11.99

$

Usually ships in 3-6 days

0

18

Toro E633080

Bushing
(Superseded to 1-633080)

$10.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

20

Toro E633097

Hitch Pin w/Lanyard
(Superseded to 1-633097)

$23.99

$

In Stock, only 2 left!

0

21

Toro E806005

Hairpin
(Superseded to 1-806005)

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

24

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

28

Toro E633096

Rod-Deck Lift
(Superseded to 1-633096)

$23.99

$

In Stock, only 3 left!

0

29

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

30

Toro E633441

Swivel-Deck Mount
(Superseded to 1-633441)

$27.99

$

Usually ships in 3-6 days

0

31

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Toro E633064

Spring-Deck Support
(Superseded to 1-633064)

$33.99

$

In Stock, only 1 left!

0

33

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

34

Toro E543513

Cap-Grease
(Superseded to 1-543513)

$7.99

$

In Stock, Qty 7

0

35

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

36

Toro E543511

Seal-Grease
(Superseded to 1-543511)

$12.99

$

In Stock, Qty 19

0

37

Toro E632511

Caster
(Superseded to 116-8883)

$147.99

$

In Stock, only 2 left!

0

38

Toro 32146-14

LOCKNUT
(Superseded to 3296-51)

$6.49

$

In Stock, Qty 10

0

39

Toro E633508

Washer-Bellevue
(Superseded to 1-633508)

$3.49

$

In Stock, Qty 20+

0

40

Toro E800339

Screw-HH
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

41

Toro E811010

Plug
(Superseded to 1-811010)

$5.49

$

In Stock, Qty 11

0

42

Toro E632586

Caster Wheel ASM
(Superseded to 1-634662)

$246.99

$

In Stock, only 2 left!

0

43

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

44

Toro E633579

Spacer
(Superseded to 1-633579)

$13.99

$

In Stock, only 2 left!

0

45

Toro E633580

Seal-Bearing
(Superseded to 1-633580)

$9.49

$

In Stock, Qty 8

0

46

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 7

0

47

Toro E633581

Spacer-Bearing
(Superseded to 1-633581)

$4.99

$

In Stock, Qty 14

0

48

Toro E633582

Wheel & Tire ASM
(Superseded to 1-633582)

$153.99

$

In Stock, only 2 left!

0

48:1

Toro 254-79

BEARING-ROLLER, CUP

$6.99

$

In Stock, Qty 12

0

48:2

Toro E633002

Tire
(Superseded to 1-633002)

$99.99

$

Usually ships in 3-6 days

0

48:3

Toro E633583

Wheel
(Superseded to 1-633583)

$102.99

$

Usually ships in 3-6 days

0

54

Toro E633587

Handle
(Superseded to 1-633587)

$7.99

$

Usually ships in 3-6 days

0

55

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

56

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

58

Toro E633706

Decal-HOC
(Superseded to 1-633706)

$3.99

$

In Stock, Qty 5

0

59

Toro E633345

Decal-HOC
(Superseded to 1-633345)

$20.99

$

Usually ships in 3-6 days

0

60

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0

61

Toro E633766

Decal-Check
(Superseded to 1-633766)

$

$

Not available

62

Toro E633737

Decal-Z-Master
(Superseded to 1-633737)

$51.99

$

Usually ships in 3-6 days

0

65

Toro E633791

Decal-Caution
(Superseded to 1-633818)

$7.49

$

Usually ships in 3-6 days

0
