742004 - Gravely 1050 Hand Vac Extension Kit Hand Vac Kit Parts Diagram

1050 Hand Vac Extension Kit

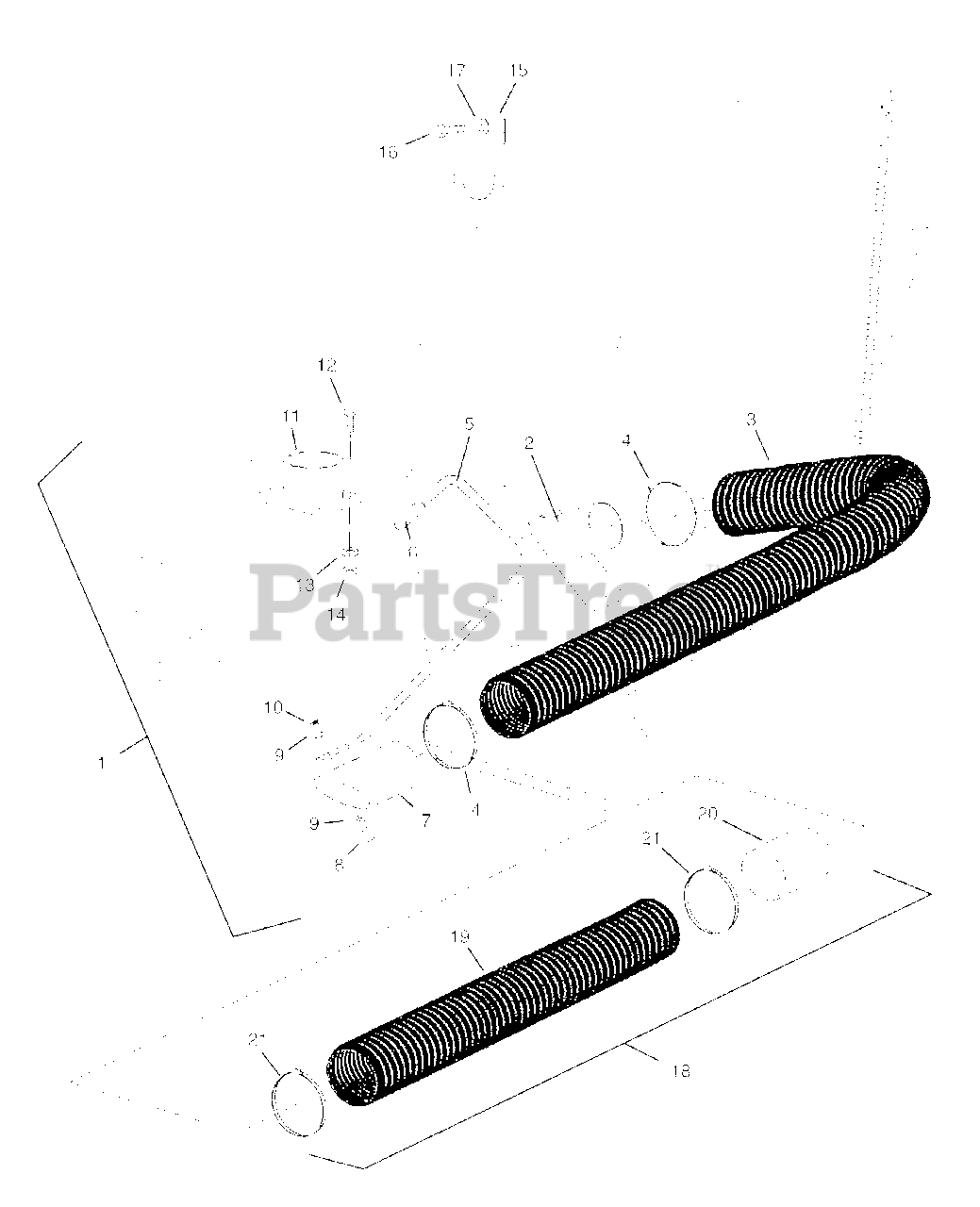

Hand Vac Kit Parts Diagram

  • Title

1

Gravely 74200400

Hand Vac Kit - 1050
(Superseded to 79506500)

Note: (Contains Items 2-17)

$

$

Not available

2

Gravely 09219300

Adapter Tube Weldment

$

$

Not available

3

Gravely 09211800

Hose 6" x 10' Spring, Black

$255.99

$

Usually ships in 4-12 days

0

4

Gravely 038532

Hose Clamp
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 09204400

Nozzle Handle
(Superseded to 09204451)

$

$

Not available

6

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 09219900

Nozzle Tube
(Superseded to 09219951)

$

$

Not available

8

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09219800

Nozzle Holder
(Superseded to 09271551)

$

$

Not available

12

Gravely 05948700

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06529600

Nut-Locking .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09219500

Flex Hose Hanger
(Superseded to 09219551)

$

$

Not available

16

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

17

63088

Washer-Lock .375 x .155

$

$

Not available

18

Gravely 74200500

Hand Vac Extension Kit
(Superseded to 79506600)

Note: (Contains Items 19-21)

$

$

Not available

19

Gravely 09211800

Hose 6" x 10' Spring, Black

$255.99

$

Usually ships in 4-12 days

0

20

Gravely 09219600

Flex Hose Insert

$

$

Not available

21

Gravely 038532

Hose Clamp
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0
