74199 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) ENGINE CONTROLS ASSEMBLY KOHLER CV493S-27529 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

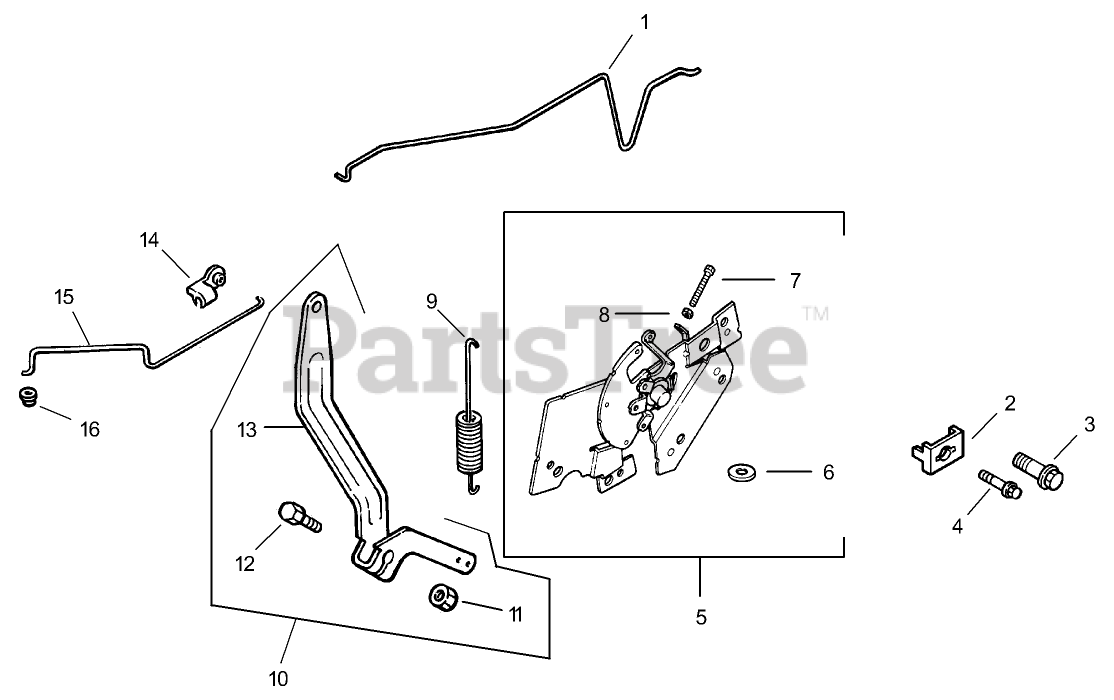

ENGINE CONTROLS ASSEMBLY KOHLER CV493S-27529 Parts Diagram

  • Title
1

Kohler 12 079 11-S

Linkage-Choke

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 536 02-S

Control, speed assembly (Incl. 6-8)

Note: Obtain parts from www.kohlerplus.com

$60.99

$

Usually ships in 2-5 days

0

6

Kohler 230293-S

Spacer-Shim

Note: Obtain parts from www.kohlerplus.com

$7.49

$

Usually ships in 2-5 days

0

7

Kohler M-401030-S

Screw (M4x0.7x30)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

8

Kohler M-446030-S

NUT (M4X0.7)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

9

Kohler 52 089 07-S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

10

Kohler 12 755 83-S

Kit, governor lever (Includes 11-13)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

11

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

12

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

13

Kohler 12 090 28-S

Lever-Governor

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 1 left!

0

14

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 16

0

15

Kohler 12 079 10-S

Linkage-Throttle

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 1 left!

0

16

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 20+

0
