74199 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) DECK SPINDLE ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

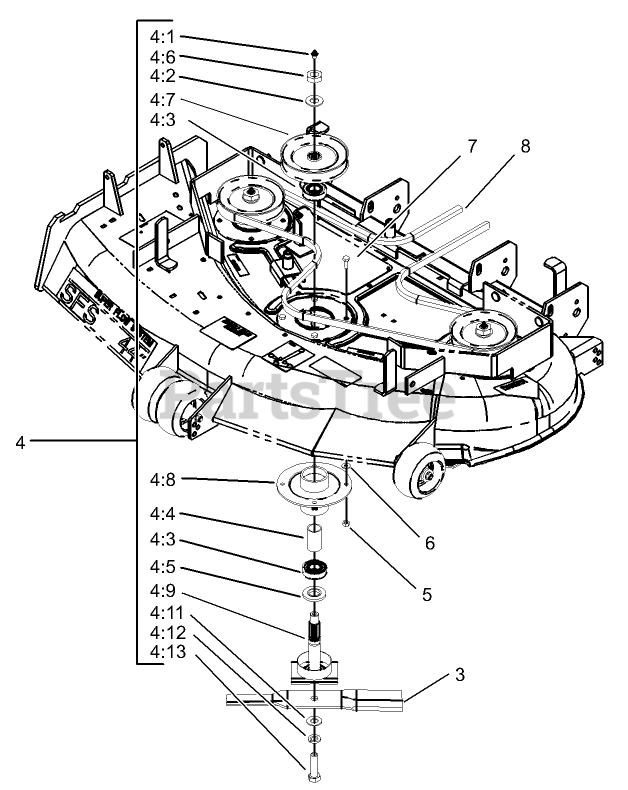

DECK SPINDLE ASSEMBLY Parts Diagram

  • Title

3

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 100-3977

SPINDLE HOUSING ASM

$354.99

$

In Stock, only 1 left!

0

4:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

4:2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

4:3

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

4:4

Toro 67-7580

SPACER-BEARING

$

$

Not available

4:5

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

4:6

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 6

0

4:7

Toro 100-3975

PULLEY AND HUB ASM

$125.99

$

Usually ships in 3-6 days

0

4:8

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

4:9

Toro 100-3974

Spindle Shaft ASM

$204.99

$

In Stock, only 3 left!

0

4:11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

4:12

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4:13

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 99-4647

V-BELT-DRIVE, DECK

$118.99

$

In Stock, only 1 left!

0
