74199 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV493S-27529 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

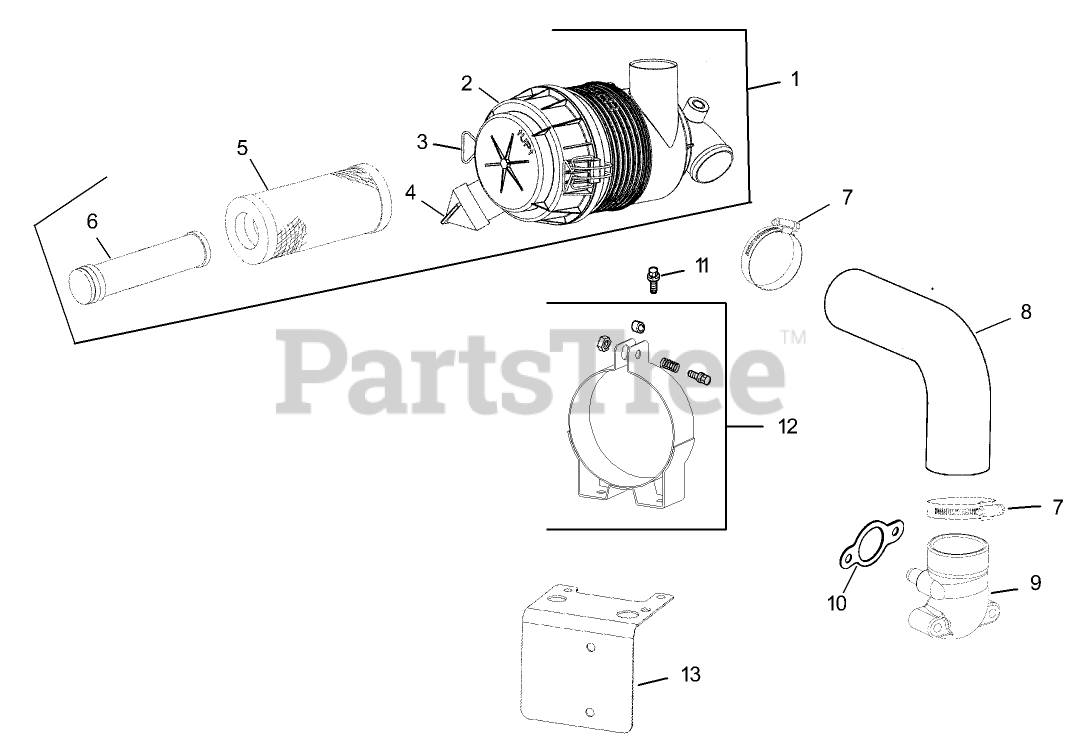

AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV493S-27529 Parts Diagram

  • Title
1

Kohler 25 048 06-S

Cleaner assembly, air (Includes 2-6)

Note: Obtain parts from www.kohlerplus.com

$313.99

$

In Stock, only 1 left!

0

2

Kohler 25 096 05-S

Cover assembly, plastic air cleaner

Note: Obtain parts from www.kohlerplus.com

$83.99

$

In Stock, only 1 left!

0

3

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 12

0

4

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Obtain parts from www.kohlerplus.com

$21.99

$

In Stock, only 2 left!

0

5

Kohler 25 083 02-S

Element, air-primary

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 5

0

6

Kohler 25 083 03-S

Element, air-safety

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 6

0

7

Kohler 24 237 02-S

Clamp, hose

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

8

Kohler 12 326 23-S

Hose, air cleaner

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 054 06-S

Elbow assembly

Note: Obtain parts from www.kohlerplus.com

$85.99

$

Usually ships in 2-5 days

0

10

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

11

Kohler M-851016-S

Screw, hex. flange

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

12

Kohler 12 126 94-S

Bracket assembly, air cleaner support

Note: Obtain parts from www.kohlerplus.com

$89.99

$

Usually ships in 2-5 days

0

13

Kohler 25 126 01-S

Bracket, air cleaner

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

Kohler 12 158 03-S

Bushing, ignition wire

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

Kohler 12 158 03-S

Bushing, ignition wire

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0
