74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) FUEL SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

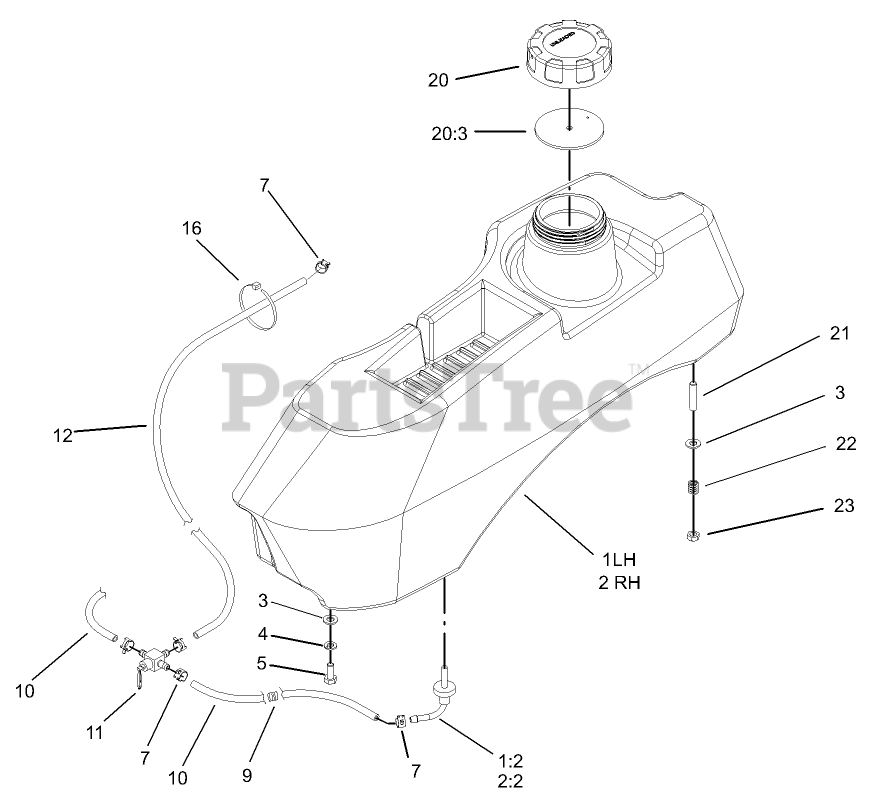

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 106-9976

LH Fuel Tank ASM
(Superseded to 108-2753)

$

$

Not available

1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

2

Toro 106-9975

RH Fuel Tank ASM
(Superseded to 105-3639)

$547.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

9

Toro 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

10

Toro 1-543526

HOSE-FUEL
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

11

Toro 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

12

Toro 103-0216

HOSE-FUEL

$

$

Not available

16

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

20

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

20:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

21

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

22

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0
