74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) FUEL TANK/FUEL VALVE ASSEMBLY KAWASAKI FH680V-AS21 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

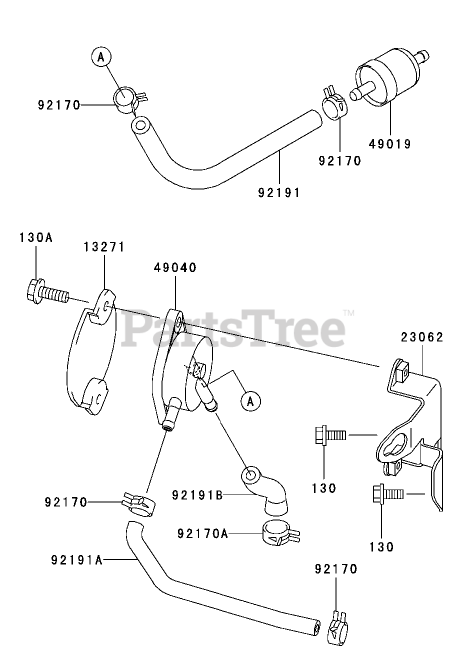

FUEL TANK/FUEL VALVE ASSEMBLY KAWASAKI FH680V-AS21 Parts Diagram

  • Title

13271

Kawasaki 13271-7004

Plate

Note: Obtain Parts From Kawasaki

$4.49

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7004-9H

Bracket
(Superseded to 23062-7019-9H)

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, Qty 10

0

49019

Kawasaki 49019-7001

Filter-Fuel
(Superseded to 49019-0027)

Note: Obtain Parts From Kawasaki

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7001

Pump-Fuel
(Superseded to 49040-2075)

Note: Obtain Parts From Kawasaki

$37.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2088

Clamp

Note: Obtain Parts From Kawasaki

$

$

Not available

92170A

Kawasaki 92170-7003

Clamp

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7003

TUBE (6.35X12.7X160)

Note: Obtain Parts From Kawasaki

$

$

Not available

92191A

Kawasaki 92191-7017

Tube

Note: Obtain Parts From Kawasaki

$

$

Not available

92191B

Kawasaki 92191-7027

Tube

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0
