74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000327 - 220999999) (2002) PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

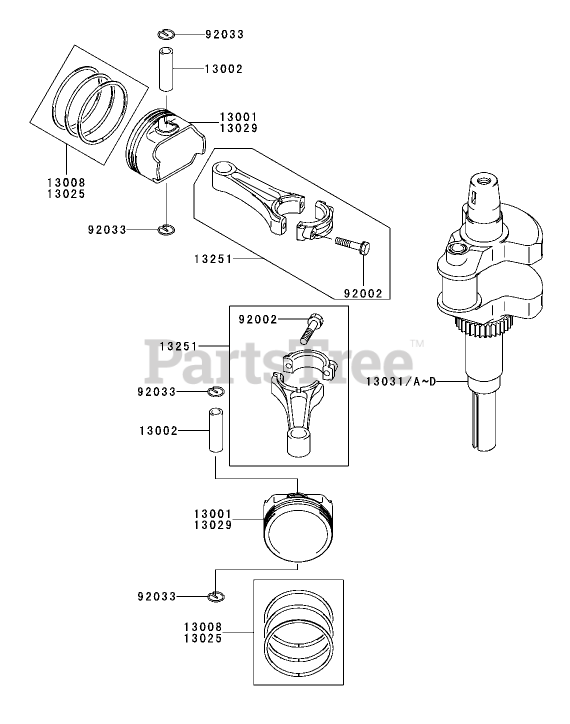

PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

  • Title
13001

Kawasaki 13001-7007

Piston-Engine
(Superseded to 13001-7006)

Note: Obtain Parts From Kawasaki

$39.99

$

In Stock, only 3 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 12

0

13008

Kawasaki 13008-6058

Piston Ring Set

Note: Obtain Parts From Kawasaki

$81.99

$

In Stock, Qty 6

0

13025

Kawasaki 13025-7002

Piston Ring Set (L, 0.50)

Note: Obtain Parts From Kawasaki

$54.99

$

In Stock, only 1 left!

0

13029

Kawasaki 13029-7003

Piston-Engine (L, 0.50)
(Superseded to 13029-7002)

Note: Obtain Parts From Kawasaki

$

$

Not available

13031D

Toro 13031-7002

Crankshaft-Comp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

13251

Toro 13251-7002

Rod-Assy-Connecting

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92002

Kawasaki 92002-2053

Bolt
(Superseded to 315601-3245A)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, only 2 left!

0

92033

Kawasaki 92033-7005

Ring-Snap

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 7

0
