74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000326) (2002) VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

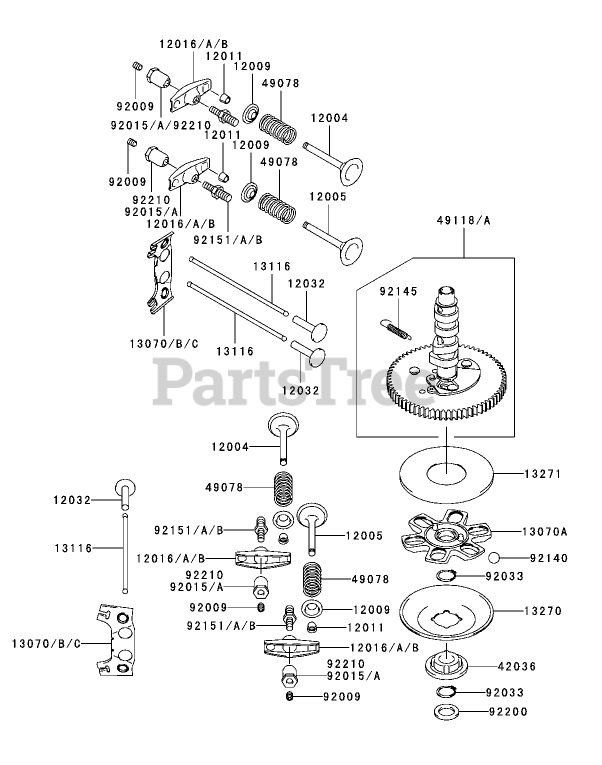

VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

  • Title
12004

Kawasaki 12004-7002

Valve-Intake

Note: Obtain Parts From Kawasaki

$18.99

$

In Stock, Qty 20+

0

12005

Kawasaki 12005-7002

Valve-Exhaust
(Superseded to 12005-7004)

Note: Obtain Parts From Kawasaki

$43.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

12016A

Toro 12016-7006

Arm-Rocker

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

12032

Kawasaki 12032-7001

Tappet

Note: Obtain Parts From Kawasaki

$8.99

$

In Stock, Qty 20+

0

13070A

Kawasaki 13070-7004

Guide
(Superseded to 13070-7002)

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 20+

0

13070B

Kawasaki 13070-7007

Guide
(Superseded to 13070-7003)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

13116

Kawasaki 13116-7002

Rod-Push
(Superseded to 13116-7001)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7002

Plate
(Superseded to 13271-7021)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 18

0

13271

Kawasaki 13271-7007

Plate
(Superseded to 13270-7003)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 10

0

42036

Toro 42036-7001

Sleeve

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49078

Kawasaki 49078-7002

Spring-Valve, Engine (INTAKE)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

49118A

Kawasaki 49118-7007

Camshaft
(Superseded to 99999-7074)

Note: Obtain Parts From Kawasaki

$109.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2341

Screw

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7002

Ball
(Superseded to 92140-7005)

Note: Obtain Parts From Kawasaki

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

92151B

Kawasaki 92151-7019

Bolt
(Superseded to 92153-7019)

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7001

Washer

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 11

0
