74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000326) (2002) DECK SPINDLE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

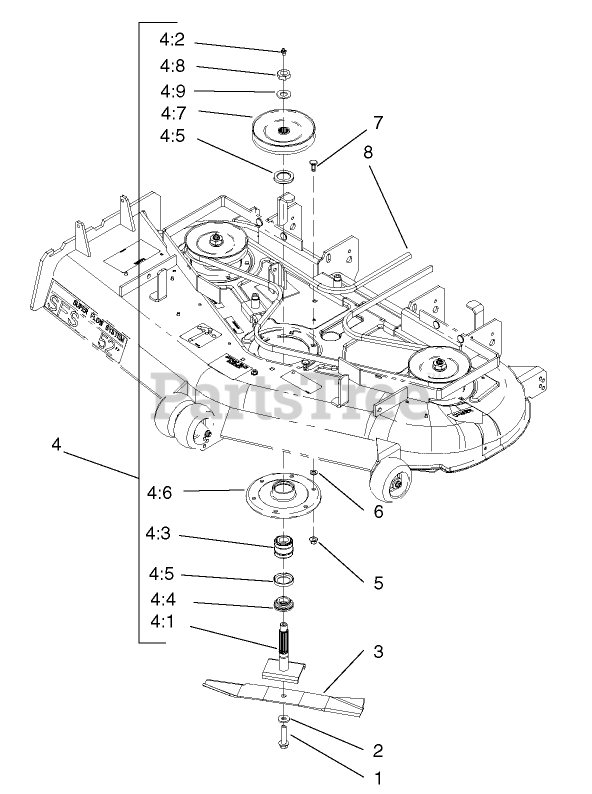

DECK SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

2

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

3

Toro 56-2390

BLADE-SAIL, EXTRA HIGH
(Superseded to 56-2390-03)

$37.99

$

In Stock, Qty 13

0

4

Toro 100-3976

SPINDLE HOUSING ASM

$530.99

$

In Stock, only 1 left!

0

4:1

Toro 100-3972

SPINDLE SHAFT ASM

$413.99

$

Usually ships in 3-6 days

0

4:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

4:3

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

4:4

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

4:5

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

4:6

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

4:7

Toro 100-3970

PULLEY AND HUB ASM

$181.99

$

Usually ships in 3-6 days

0

4:8

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

4:9

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

5

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 99-3904

BELT-DECK (52)

$169.99

$

In Stock, only 2 left!

0
