74198 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000326) (2002) AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

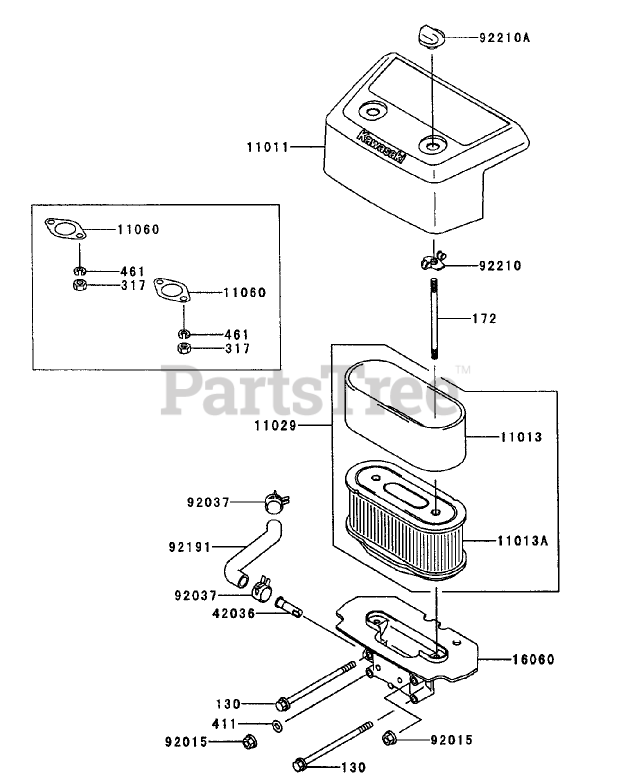

AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH680V-CS10 Parts Diagram

  • Title
11011

Kawasaki 11011-7003

Case-Air Filter
(Superseded to 11011-6001)

Note: Obtain Parts From Kawasaki

$26.99

$

In Stock, Qty 16

0

11013

Kawasaki 11013-7009

Element-Filter, Air
(Superseded to 11013-7003)

Note: Obtain Parts From Kawasaki

$7.49

$

In Stock, Qty 20+

0

11013A

Toro 11013-7010

Element-Air Filter

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11029

Kawasaki 11029-7002

Element-Assy-AirFilter
(Superseded to 11029-7012)

Note: Obtain Parts From Kawasaki

$26.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-7016

Gasket-Muffler

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

16060

Kawasaki 16060-7001

Pipe-Intake
(Superseded to 16060-6005)

Note: Obtain Parts From Kawasaki

$41.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7002

Sleeve

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-2079

Clamp
(Superseded to 92173-7003)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7006

Tube

Note: Obtain Parts From Kawasaki

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92210A

Toro 92210-7008

Nut

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130

Kawasaki 130B06105

Bolt-Flanged (6X10.5 )
(Superseded to 130AA06105)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 7

0

172

Kawasaki 172G0690

Bolt-Stud (6X90)
(Superseded to 172BA0690)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 12

0

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 12

0

461

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
