74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) STARTER ASSEMBLY KOHLER CV23S-75560 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

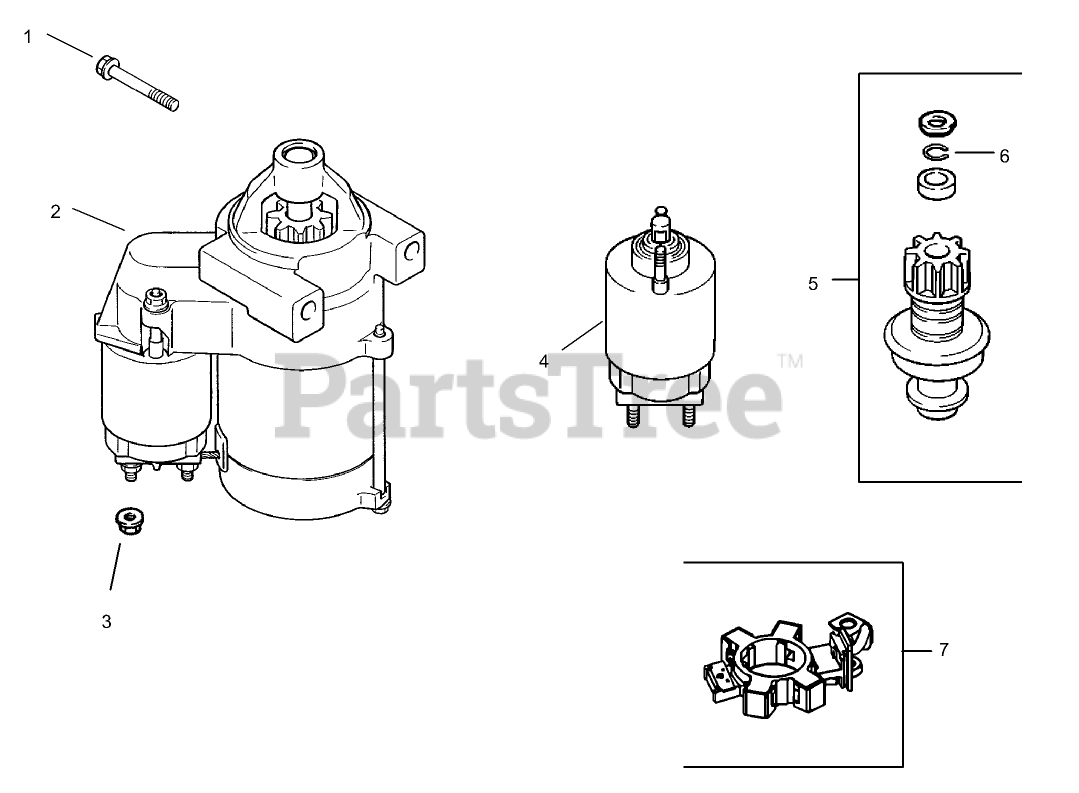

STARTER ASSEMBLY KOHLER CV23S-75560 Parts Diagram

  • Title

1

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

2

Kohler 25 098 08-S

Starter, solenoid (Includes 4-7)
(Superseded to 25 098 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 435 04-S

Solenoid Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 25 755 33-S

Kit, pinion drive (Includes 6)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 25 141 05-S

RING-RETAINING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$70.99

$

Usually ships in 2-5 days

0
