74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) ENGINE CONTROL ASSEMBLY KOHLER CV23S-75560 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

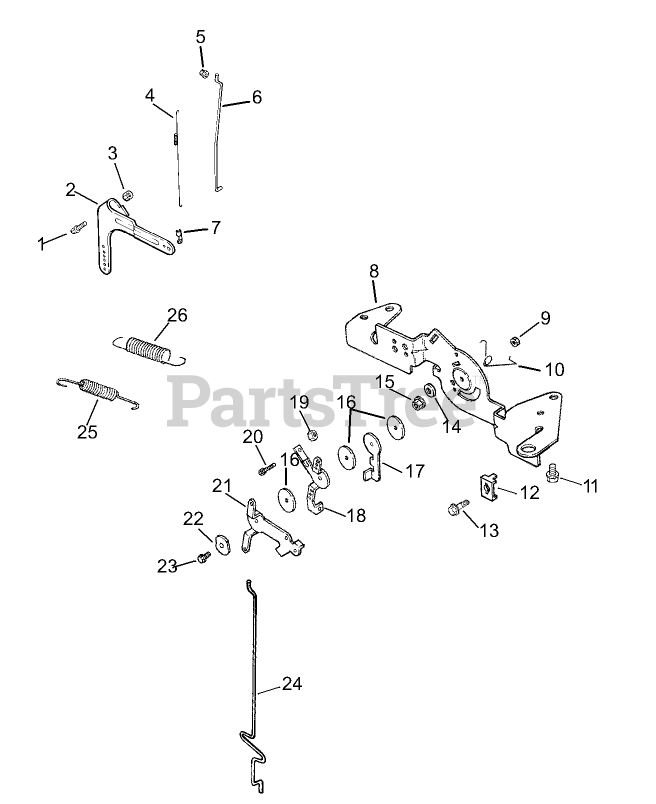

ENGINE CONTROL ASSEMBLY KOHLER CV23S-75560 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT-SQ NECK, RD HD (M6X1.0X25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

2

Kohler 24 090 33-S

Lever-Governor
(Superseded to 24 090 69-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

4

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 9

0

5

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 18

0

6

Kohler 24 079 04-S

LINKAGE-THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

7

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

8

Kohler 24 126 56-S

Bracket-Control
(Superseded to 24 126 263-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 1 left!

0

9

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

10

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 12

0

11

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

12

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

13

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

14

Kohler X-20-1-S

Washer-Lock (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 1 left!

0

15

Kohler M-541050-S

Nut-HF (M5x0.8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 10

0

16

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

17.

Kohler 24 090 07-S

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 1 left!

0

18

Kohler 24 090 03-S

Lever-Control, Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

19

Kohler M-446030-S

NUT (M4X0.7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

20

Kohler M-403025-S

SCREW-SLOTTED HEAD (M4X0.7X25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 1 left!

0

21

Kohler 24 090 05-S

LEVER-CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 2 left!

0

22

Kohler 41 468 03-S

WASHER-SPRING (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

23

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

24

Kohler 24 079 05-S

Linkage, choke
(Superseded to 24 079 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, Qty 7

0

25

Kohler 24 089 51-S

Spring-Limiter, Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 1 left!

0

26

Kohler 24 089 46-S

Spring-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

In Stock, only 2 left!

0
