74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV23S-75560 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

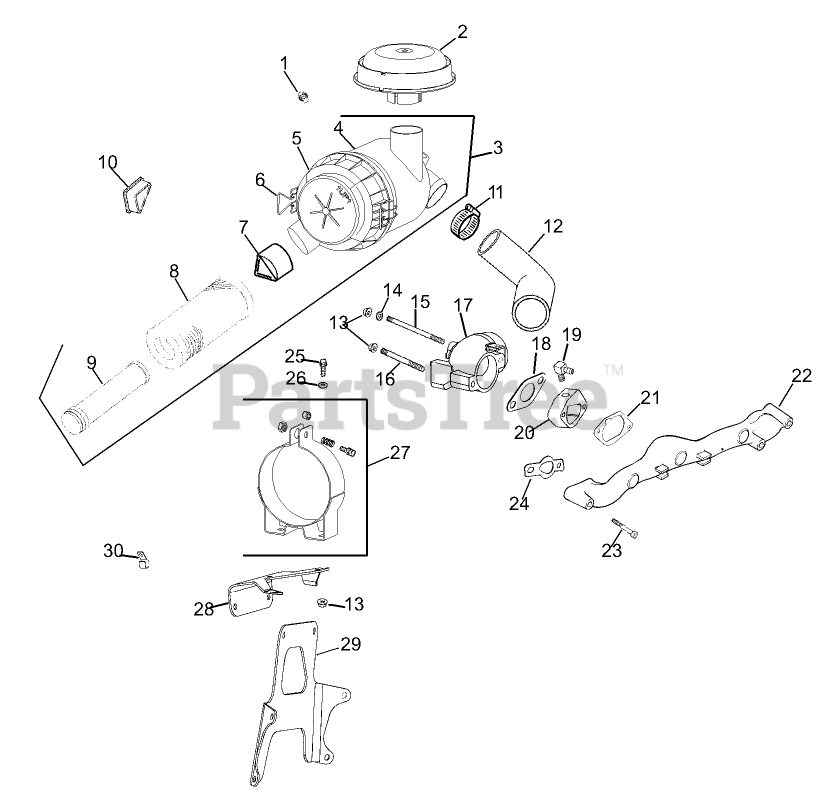

AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV23S-75560 Parts Diagram

  • Title

1

Kohler 25 139 20-S

Plug-Pipe

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

Usually ships in 2-5 days

0

2

Kohler 25 324 02-S

Hood-Cleaner, Air
(Superseded to 25 324 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$49.99

$

Usually ships in 2-5 days

0

3

Kohler 25 048 07-S

Assembly, air cleaner (Includes 4-9)
(Superseded to 25 048 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$143.99

$

Usually ships in 2-5 days

0

4

Kohler 25 081 01-S

Housing-Air Cleaner, Heavy Duty

Note: Call PartsTree Customer Service for more information on Kohler Parts

$140.99

$

In Stock, only 1 left!

0

5

Kohler 25 096 06-S

AIR CLEANER COVER ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$87.99

$

In Stock, only 1 left!

0

6

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 12

0

7

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$21.99

$

In Stock, only 3 left!

0

8

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

10

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

11

Kohler 25 237 07-S

Clamp-Hose
(Superseded to 25 237 21-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, only 1 left!

0

12

Kohler 24 326 53-S

Hose, air cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

Usually ships in 2-5 days

0

13

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

14

Kohler 25 468 01-S

Washer-Copper

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

15

Kohler 24 072 10-S

Stud M6x1.0x180

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 13

0

16

Kohler M-629140-S

Stud, carburetorM6x1.0x40

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

Usually ships in 2-5 days

0

17

Kohler 24 029 43-S

Adapter, elbow

Note: Call PartsTree Customer Service for more information on Kohler Parts

$200.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 44-S

Gasket, air cleaneradapter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 1 left!

0

19

Kohler 25 155 38-S

Connector-Hose

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 3 left!

0

20

Kohler 24 029 44-S

Adapter, breather fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$110.99

$

Usually ships in 2-5 days

0

21

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 8

0

22

Kohler 24 164 06-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$222.99

$

Usually ships in 2-5 days

0

23

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

24

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

25

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

26

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

28

Kohler 24 126 104-S

Bracket, air cleaner mounting
(Superseded to 24 126 184-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$92.99

$

Usually ships in 2-5 days

0

29

Kohler 24 126 105-S

Bracket-support, main
(Superseded to 24 126 227-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$277.99

$

Usually ships in 2-5 days

0

30

Kohler 47 154 01-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available

Kohler 25 454 04-S

Tie-Wire

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 454 04-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0
