74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

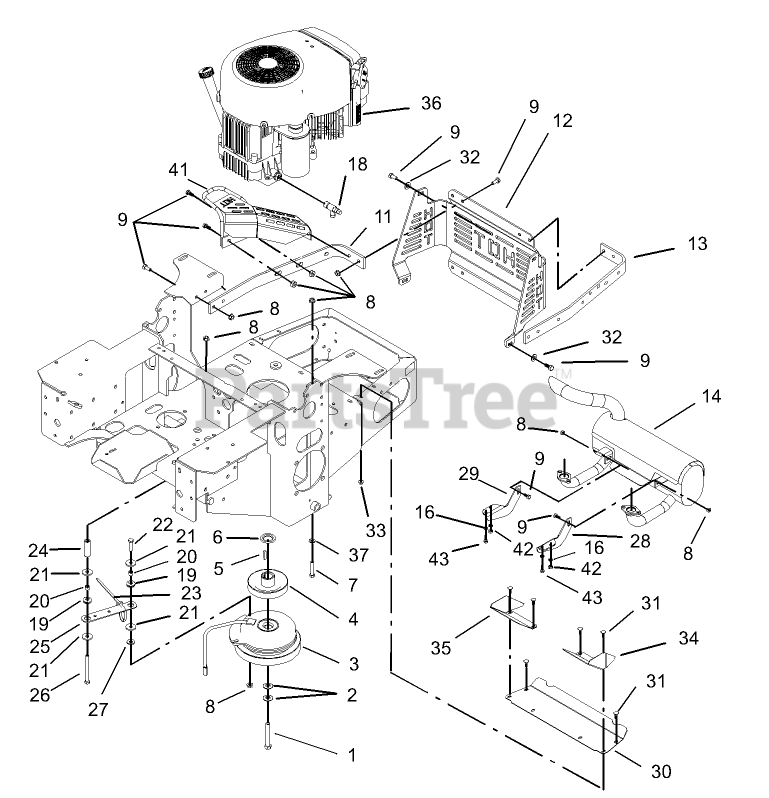

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

2

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

3

Toro 103-0690

CLUTCH
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

4

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

$2.99

$

In Stock, only 1 left!

0

6

Toro 103-2308

Spacer-Crankshaft

$9.49

$

In Stock, Qty 5

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 103-3078-03

STRAP-GUARD, RH

$

$

Not available

12

Toro 103-3219-03

GUARD-REAR

$

$

Not available

13

Toro 103-3164-03

STRAP-GUARD, LH

$

$

Not available

14

Toro 103-2760

Muffler

$

$

Not available

16

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

18

Toro 103-1963

VALVE-DRAIN, OIL

$85.99

$

Usually ships in 3-6 days

0

19

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

20

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

21

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

24

Toro 103-2614

Spacer

$

$

Not available

25

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

26

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 103-2987-03

BRACKET-MUFFLER, LH

$30.99

$

Usually ships in 3-6 days

0

29

Toro 103-2988-03

BRACKET-MUFFLER, RH

$

$

Not available

30

Toro 103-2740-03

Deflector-Short

$27.99

$

Usually ships in 3-6 days

0

31

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Toro 103-3094-03

DEFLECTOR-AIR, LH,KC

$

$

Not available

35

Toro 103-3095-03

DEFLECTOR-AIR, RH,KC

$

$

Not available

36

Engine-Kohler, CV15T-41629

Note: Not serviced separately

$

$

Not available

37

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

41

Toro 103-3218-03

GUARD-TAILPIPE

$

$

Not available

42

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

43

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
