74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230005000) (2003) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

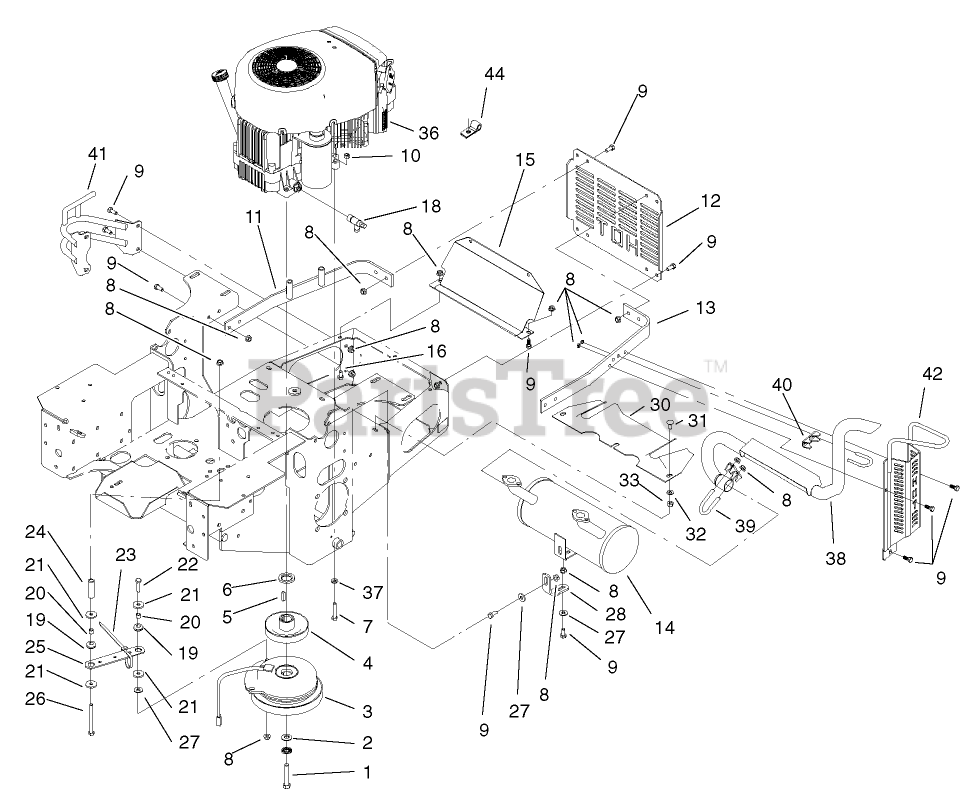

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

2

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

3

Toro 103-0690

CLUTCH
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

4

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

6

Toro 103-2308

Spacer-Crankshaft

$9.49

$

In Stock, Qty 5

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 103-3078-03

STRAP-GUARD, RH

$

$

Not available

12

Toro 1-653095-03

SHIELD-ENGINE

$

$

Not available

13

Toro 103-2751-03

Strap,Eng Guard LH Exhaust

$

$

Not available

14

Toro 103-1323

Muffler (only on:74172, 74174, 74178, 74197, 74171)

$

$

Not available

15

Toro 103-2560-03

Shield-Heat

$158.99

$

Usually ships in 3-6 days

0

16

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

18

Toro 103-1963

VALVE-DRAIN, OIL

$85.99

$

Usually ships in 3-6 days

0

19

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

20

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

21

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

24

Toro 103-2614

Spacer

$

$

Not available

25

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

26

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-653196

BRACKET-SUPPORT, MUFFLER

$17.99

$

Usually ships in 3-6 days

0

30

Toro 1-653539-03

Shield,Heat
(Superseded to 99-8922)

$153.99

$

Usually ships in 3-6 days

0

31

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Grp,Engine Components 23kc

Note: Not serviced separately

$

$

Not available

37

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

38

Toro 103-2599

TAILPIPE

$164.99

$

In Stock, only 1 left!

0

39

Toro 103-2630

CLAMP

$7.99

$

Usually ships in 3-6 days

0

40

Toro 103-2631

CLAMP

$6.49

$

Usually ships in 3-6 days

0

41

Toro 103-2564-03

RH Exhaust Guard ASM

$167.99

$

Usually ships in 3-6 days

0

42

Toro 103-2566-03

LH Exhaust Guard ASM

$167.99

$

Usually ships in 3-6 days

0

44

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0
