74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230005000) (2003) BLOWER HOUSING ASSEMBLY KOHLER CV23S PS75560 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

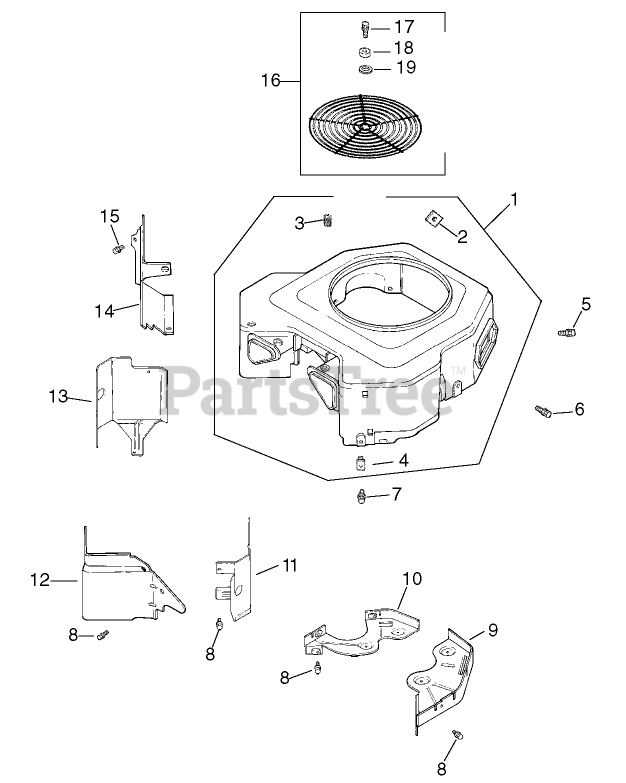

BLOWER HOUSING ASSEMBLY KOHLER CV23S PS75560 Parts Diagram

  • Title

1

Kohler 24 027 119-S

Housing, blower (Includes 2-4 & 24 332 01-S)
(Superseded to 24 027 448-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$96.99

$

In Stock, only 1 left!

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

5

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

6

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

7

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

8

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

9

Kohler 24 146 18-S

Plate, backing-No.2 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 14-S

Baffle, valley-#2 side
(Superseded to 24 063 94-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

13

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

14

Kohler 24 063 23-S

Baffle, valley-#1 side
(Superseded to 24 063 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

15

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Not illustrated

$3.49

$

In Stock, Qty 5

0

Kohler 24 096 85-S

Cover-Housing, Blower
(Superseded to 24 096 161-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 24 096 85-S

Cover-Housing, Blower
(Superseded to 24 096 161-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 24 113 90-S

Decal-23hp
(Superseded to 24 113 412-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 90-S

Decal-23hp
(Superseded to 24 113 412-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0
