74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000114 - 220999999) (2002) GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CV23S PS75560 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

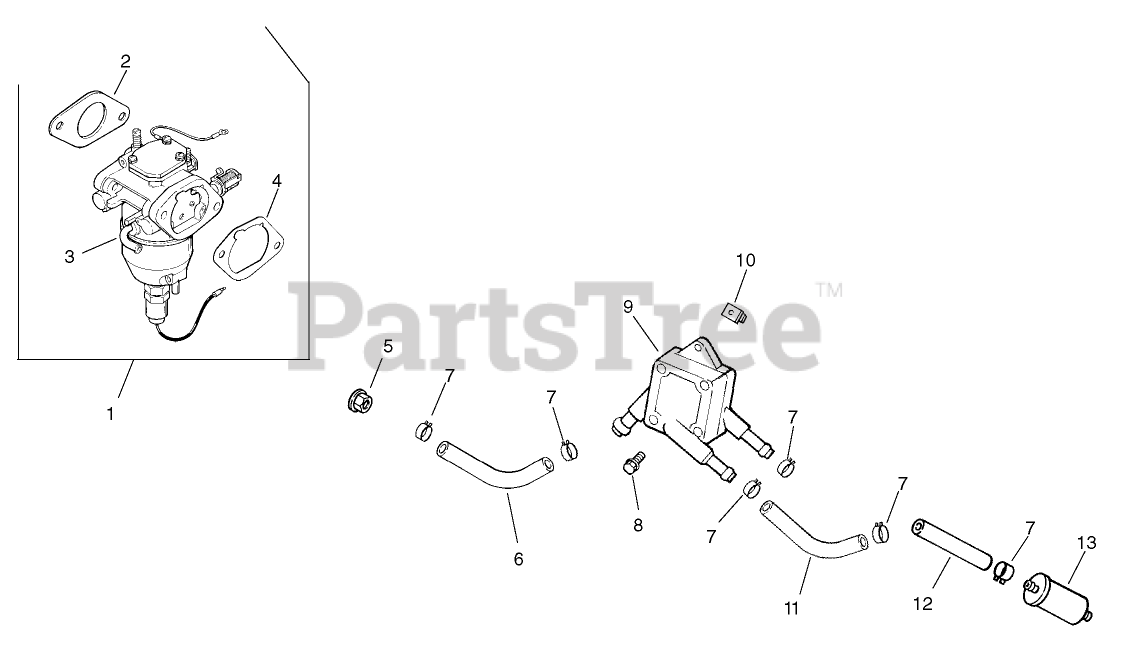

GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CV23S PS75560 Parts Diagram

  • Title

1

Kohler 24 853 95-S

Kit, carburetor w/gaskets (Includes 2-4)
(Superseded to 24 853 314-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$373.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 1 left!

0

3

Toro 24 053 95

Carburetor assembly (For information only not available separately)(Service with kits 24 757 36-S and 24 757 38-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 8

0

5

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

6

Kohler 52 353 22-S

Line, fuel 12"
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 4 left!

0

7

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

8

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 18

0

10

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

11

Kohler 24 353 03-S

Line, fuel 10-1/2
(Superseded to 24 353 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 4 left!

0

13

Kohler 25 050 03-S

Filter, fuel
(Superseded to 25 050 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

In Stock, Qty 20+

0

Toro 24 431 03-S

Sleeve, insulating (use to insulate 25 353 32-S fuel line)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Toro 24 431 03-S

Sleeve, insulating (use to insulate 25 353 32-S fuel line)

Note: Not illustrated

$

$

Currently unavailable

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Not illustrated

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 38-S

GASKET REPAIR/SERVICE KIT

Note: Not illustrated

$32.99

$

In Stock, only 1 left!

0

Kohler 24 757 38-S

GASKET REPAIR/SERVICE KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0
